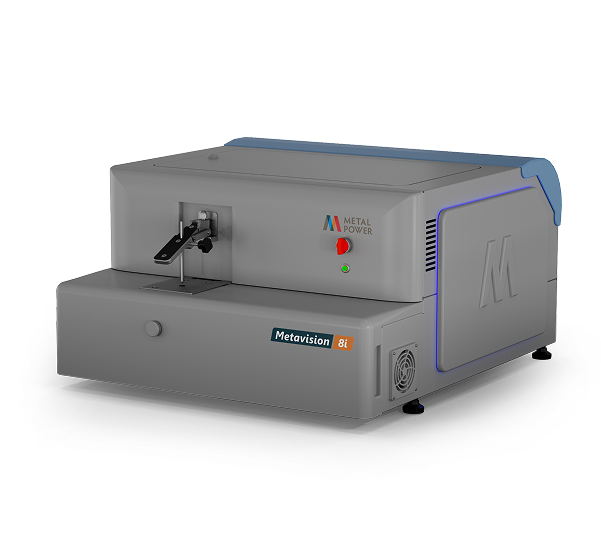

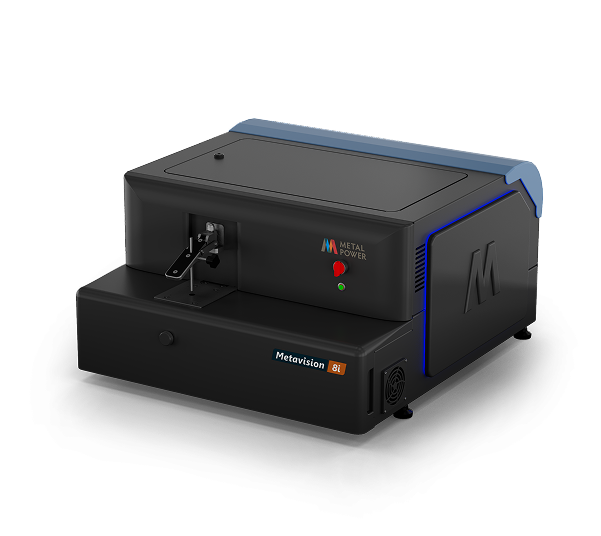

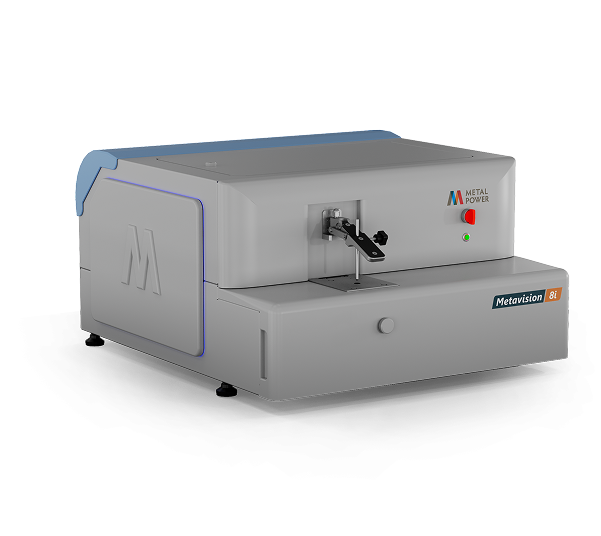

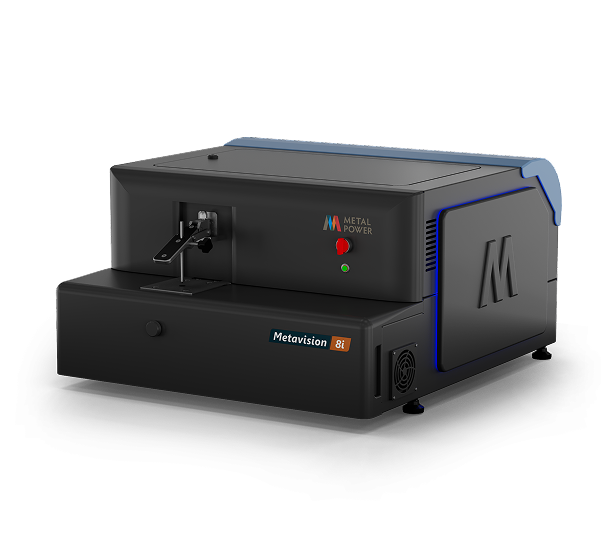

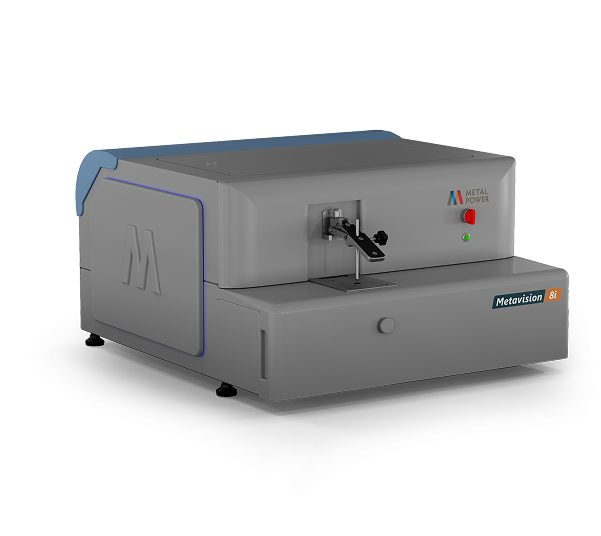

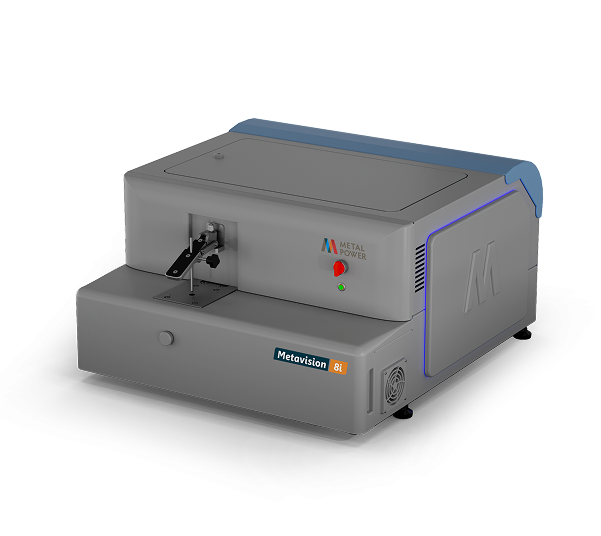

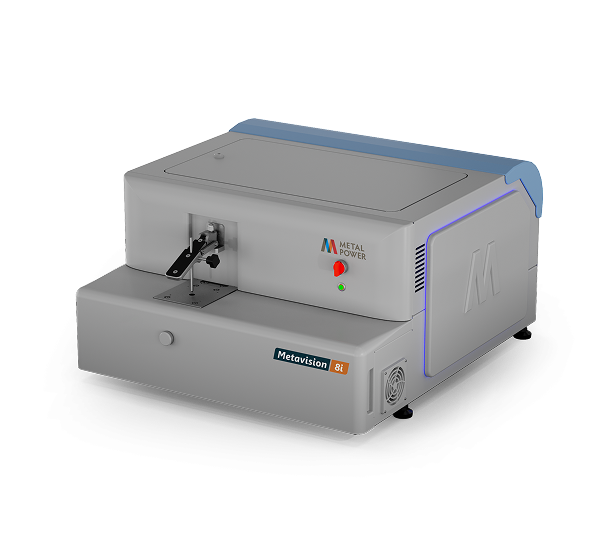

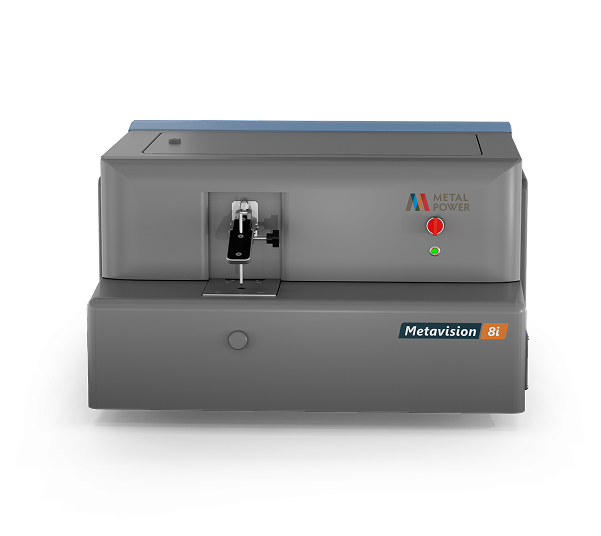

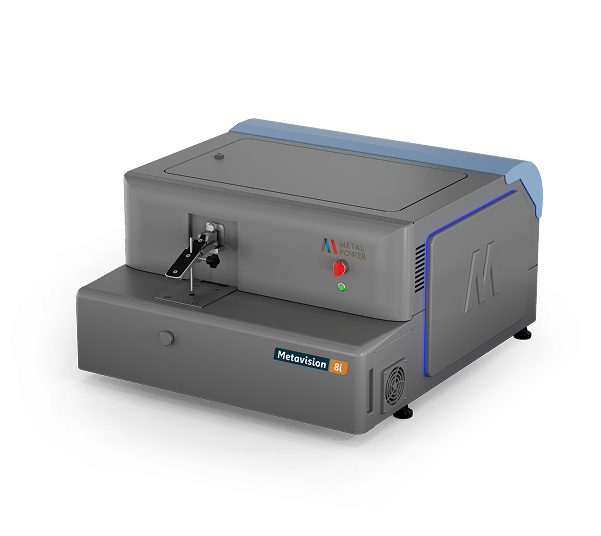

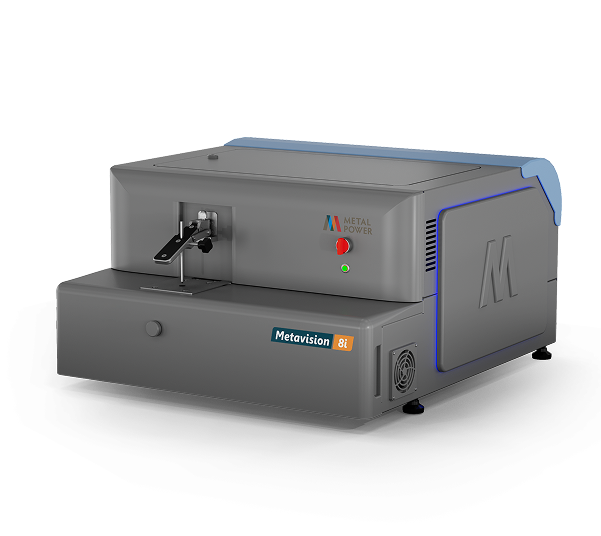

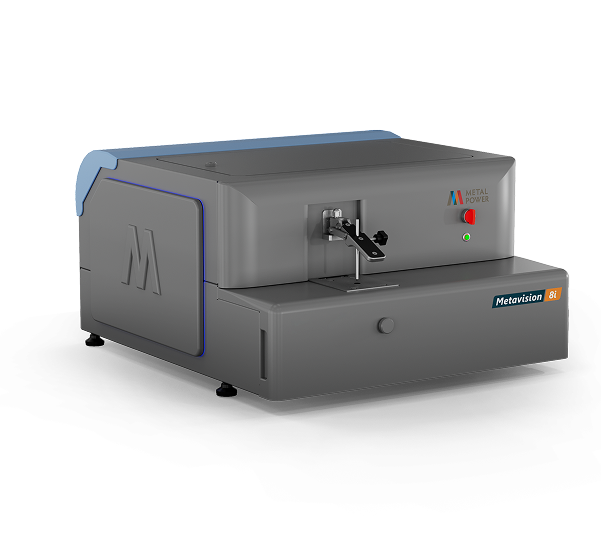

Metavision-8i: Laboratory powerhouse

Budget-friendly, yet feature-packed Optical Emission Spectrometer with elemental analysis down to ≤20 ppm

Get in touch Compare

Download brochure

Get Support

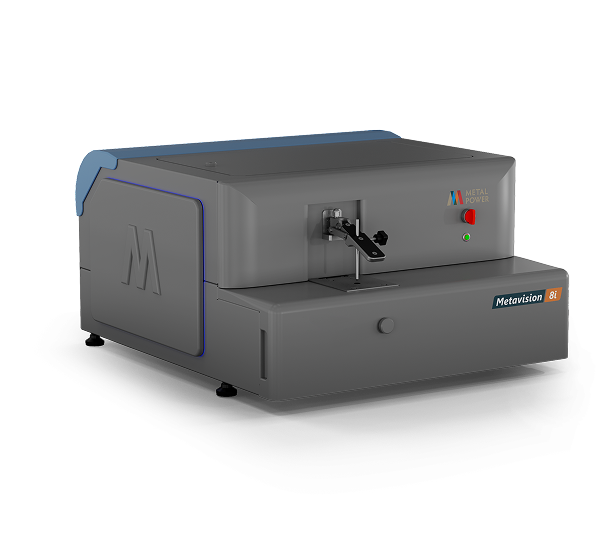

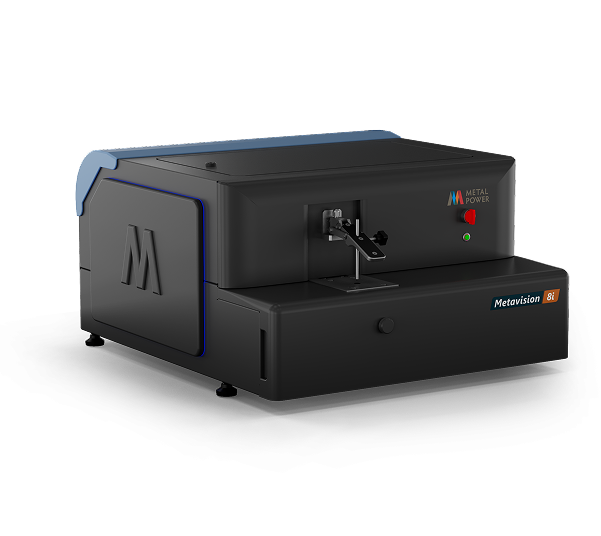

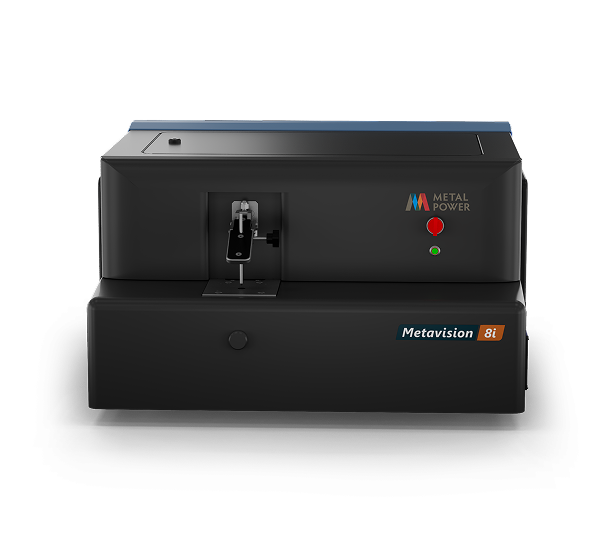

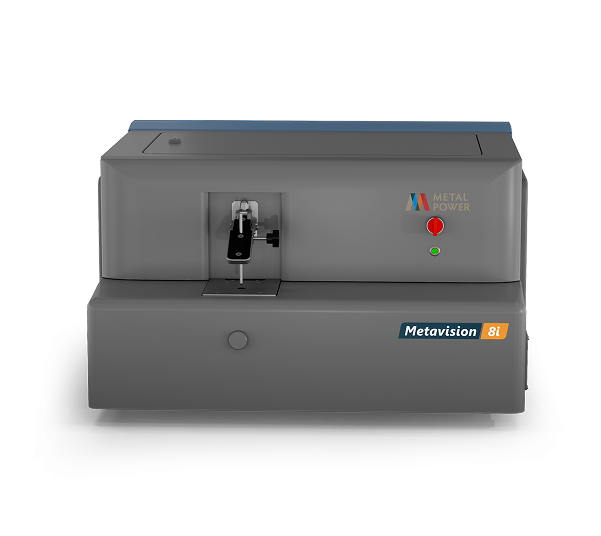

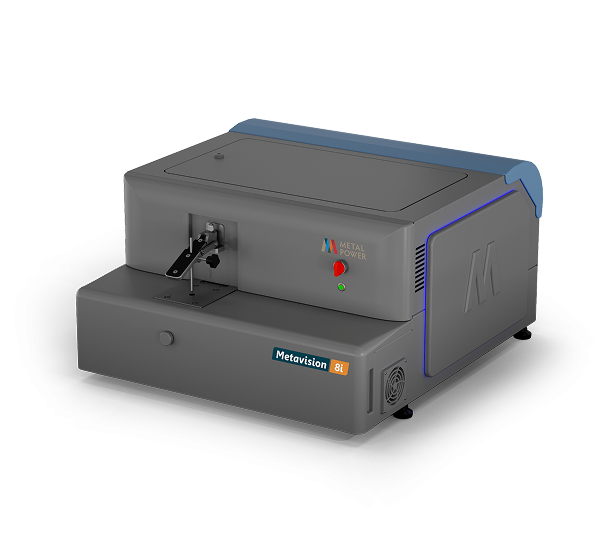

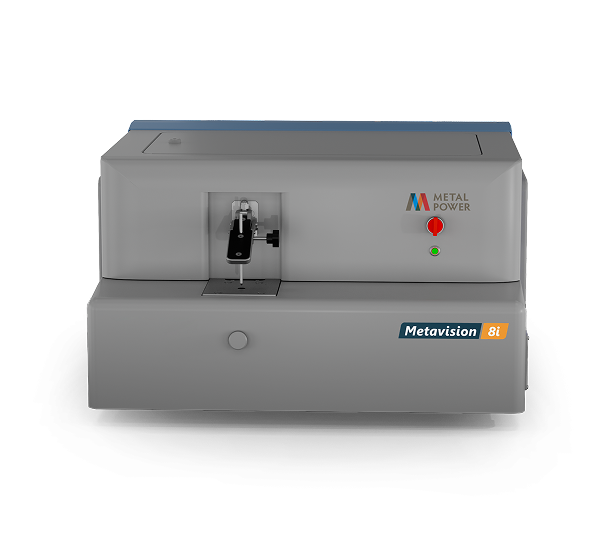

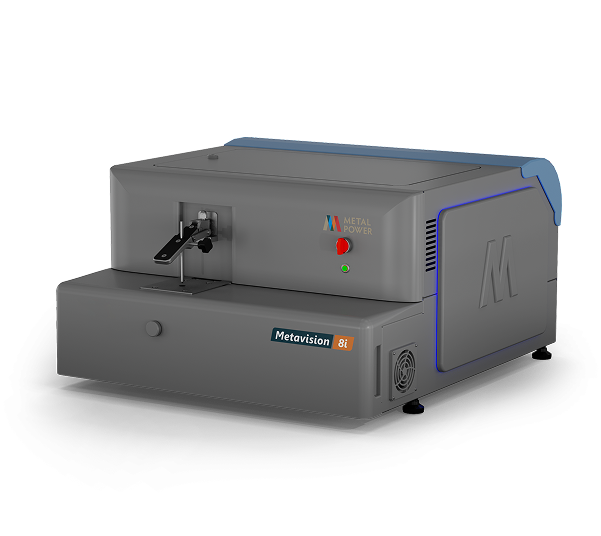

Matte Black Space Grey Classic Grey Cool Grey Warm Grey

Highlights

Highlights
Features
Special Applications
Ecosystem
Tech Specs
More Details

Highlights

55+ elements in standard calibration, including low C, S, P, B, N, etc.

Enhanced Carbon in Cast Iron analysis

Temperature-stabilised sealed optics enabling high stability with low detection limits

Metal grades library for quick identification and confirmation of grades

Features

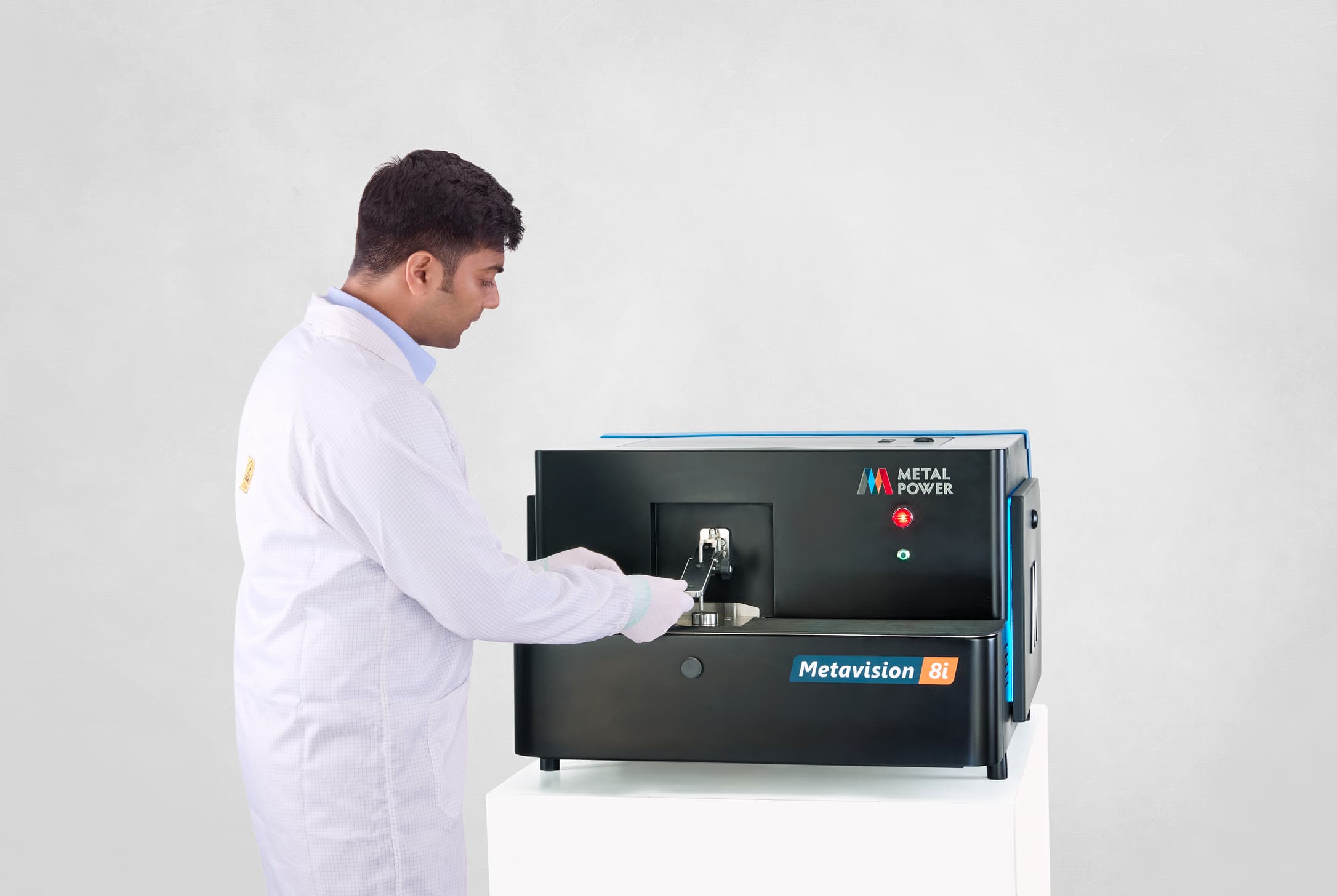

Dual Optics Design

The Metavision-8i is the only OES in its class to feature a thermally stabilised, dual optics design with a dedicated chamber for the Deep UV span.

Cutting-edge CMOS Detectors

Featuring the latest-generation CMOS detectors, the OES delivers higher sensitivity, faster processing, and virtually no dark noise.

Enhanced Carbon (C) Analysis in Cast Iron/Ductile Iron

The Metavision-8i covers the crucial 148 nm wavelength for Carbon, enabling it to automatically assess and account for graphitisation in CI/DI samples and deliver Carbon results at par with combustion analysers.

Low Nitrogen (N) Analysis in Steel

The Metavision-8i delivers low-ppm Nitrogen analysis in Steels and CI/DI, with detection limits down to 20 ppm.

SmartSTD single sample standardisation advantage

The Metavision-8i reduces standardisation time to under 5 minutes using a single sample, increasing productivity by up to 85% and reducing both operational costs and efforts.

Special
Applications

The Metavision-8i enables users to resolve the widest range of applications across various industries, ensuring high accuracy, reliability, and repeatability.

Wire rods

3 mm diameter

Thin sheets

0.1 mm thickness

Mini samples

4 mm to 13 mm sample fit diameter

Ecosystem

A comprehensive ecosystem for your Optical Emission Spectrometer.

MetaLib Pro

The world's largest library for instant metal-grade identification.

Learn more

MPALabTab

Mobile application to access your OES data from anywhere, anytime.

Learn more

LIMS

Advanced data integration and analysis tool.

Learn more

Charge Correction

Enhance your melt recipe in real-time with melt process optimisation tool.

Learn more

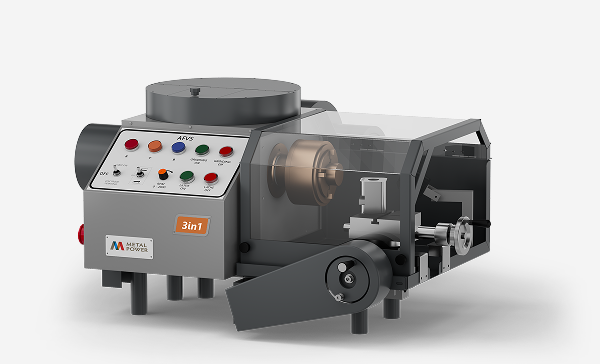

Sample Preparation Machine

Sample preparation machine for grinding, polishing, turning, and electrode pointing in ferrous and non-ferrous applications.

Learn more

CleanSharp

Brushless electrode cleaner-sharpener to make the electrode tip cleaning and pointing easy, safe, and swift.

Learn more

WirelessRTDS

Wireless transmit your readings from the lab to the melting platform.

Learn more

ArmourSafe

Protect your OES against unstable power and temperature for optimal performance.

Learn more

Tech Specs

General

Technology

Arc/Spark Optical Emission

Form Factor Options

Benchtop

Optics

Configuration

Dual vacuum-free optics

Design

Rowland Circle with Paschen-Runge mountings

Detector Type

CMOS

Detector Arrangement

Multi-Detector Array

Wavelength Coverage

140-620 nm

Focal Length

Confidential

Grating (grooves/mm)

3,600 & 2,400

Reciprocal Linear Dispersion

1.6 nm/mm

Construction

Argon purged

Peltier Cooled Optics

Internal Argon Purification

N/A

Automated Profiling

Yes

Thermal Stabilization

Yes

Excitation Source

Type

Fully Digital PWM

Control metric

Current-controlled

Max. Discharge Frequency (Hz)

1,000

Input Voltage range

90-270 VAC

Frequency

50/60 Hz

Spark Chamber

Type

Open stand

Electrode Flow type

Jet flow

Automatic Sample Detection

Available

Electrode

Tungsten

Quick Release Spark Plate

Yes

Electronics

Readout System

16-bit ADC

Computer Interface

Ethernet

Applications

Available Factory Calibrations

Ferrous, Aluminium, Copper, Nickel, Lead, Tin, Zinc, Titanium, Magnesium, Cobalt, Zirconium and Silver

Alloy Programs

Individual alloy programs for all of the above

Analysis Features

Elemental Coverage

55+

Time Resolved Spectroscopy (TRS)

Purity Analysis

99.98%+

Hydrogen (H) in Ti

Oxygen (O) in Fe, Cu, Ti & Ni

Nitrogen (N) in Steels

Yes

Soluble-Insoluble in Steels (Al, Ti, B, Ca)

Sodium (Na) & Lithium (Li) in Aluminium

Yes

RoHS Elements (Pb, Hg, Cd)

Yes

Standardisation/Re-calibration

Smart STD (Single-sample Technique)

Special Applications

Ultra-fine Wire analysis

Thin Foil Analysis

Thin Sheet Analysis

Yes

Side-on Wire analysis

Yes

Wire Rod analysis

Yes

Small-sized Sample Analysis

Yes

Physical Dimensions and Weights

Size (Benchtop)

810mm (L) x 730mm (W) x 470mm (H)

Weight (Benchtop)

~ 50 kgs

Size (Floor-standing)

N/A

Weight (Floor-standing)

N/A

Environmental Conditions

Operating Temperature

18 - 35˚C

Storage Temperature

-10 - 50˚C

Relative Humidity

20 - 80% (Non-condensing)

Accessories and Add-Ons

Sample Preparation Machines

Yes

Armour Safe (Safety Module)

Yes

WirelessRTDS (One-to-One Display Transmitter)

Yes

WirelessRTDS (One-to-Many Display Transmitter)

Yes

Mobile Application

Yes

MetaLib Pro - Grades Library

Yes

CleanSharp

Yes

Argon Regulator (Dual-stage)

Yes

Unit Pedestal

N/A

PC Pedestal

N/A

Certifications and Compliance

Regulatory Certifications

CE Certified

Compliance Standards List

ASTM

Colour Options

Model Colour Options

Warm Grey
Cool Grey
Classic Grey
Space Grey
Matte Black

More Details

Reach out to us at marketing@metalpower.net to learn more about the Metavision-8i offering analysis of 55+ elements with exceptional accuracy and precision. Featuring a vacuum-free, dual-optics design and equipped with the latest generation CMOS detectors.
