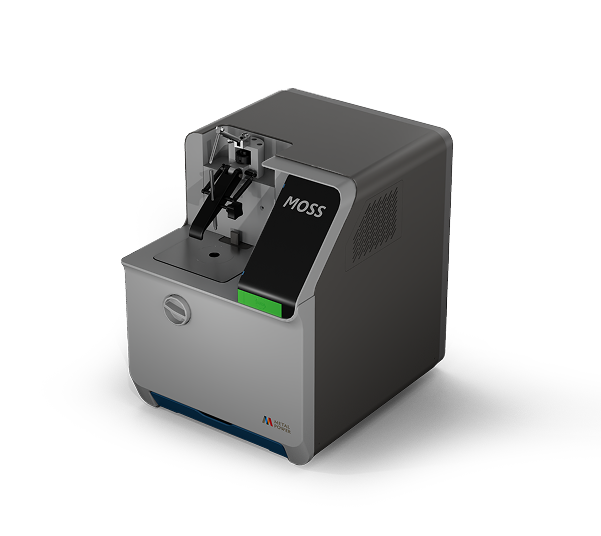

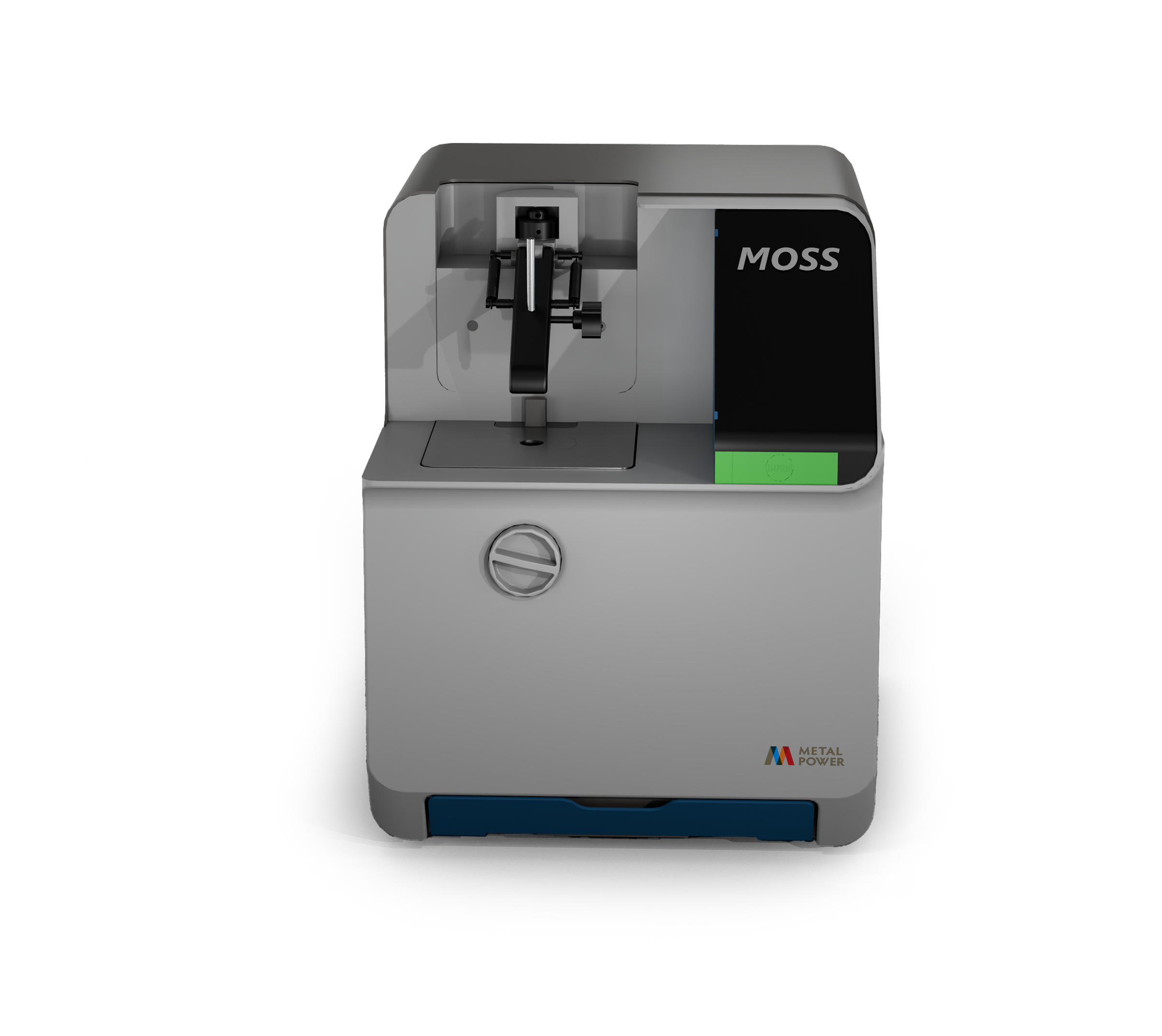

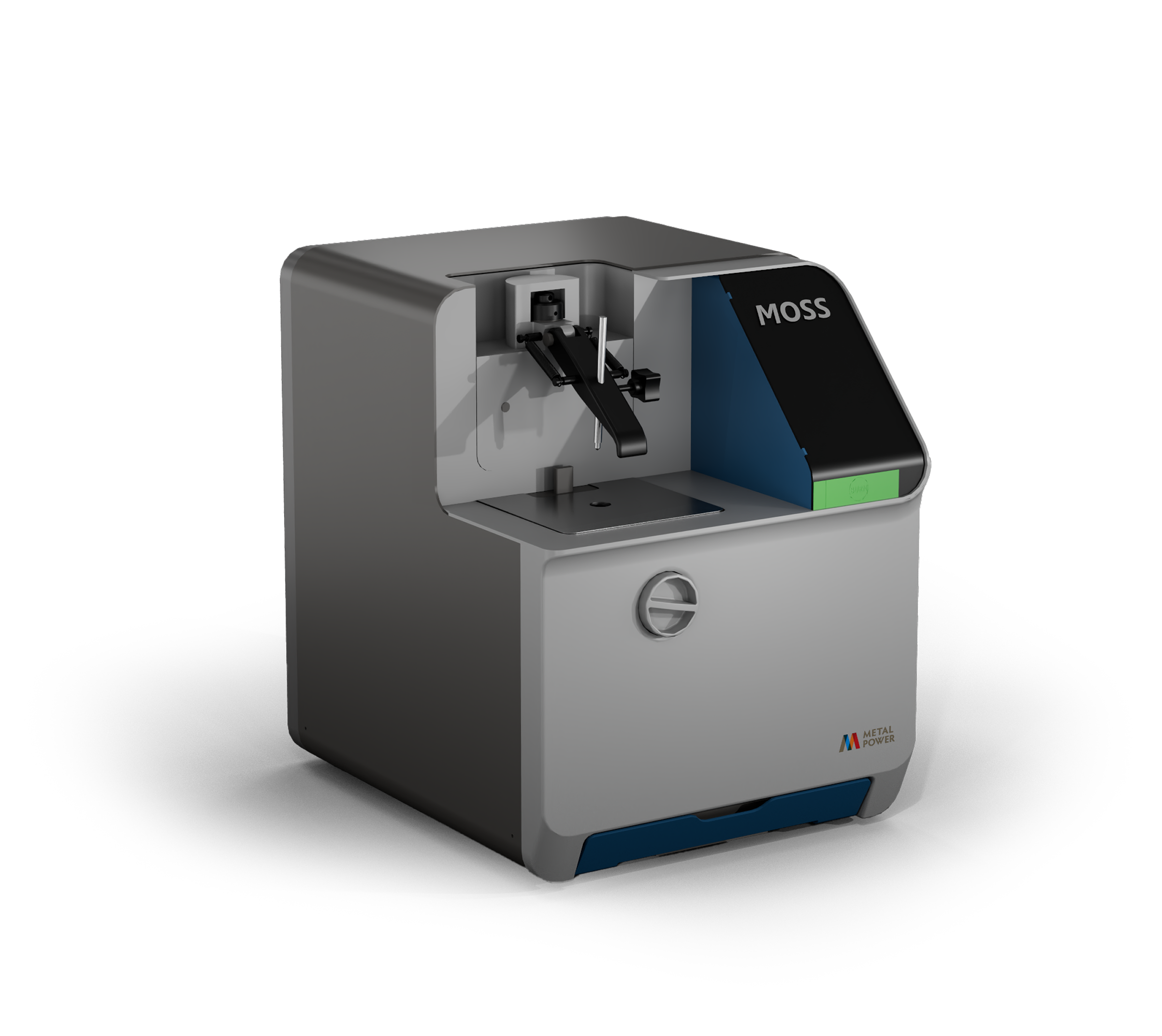

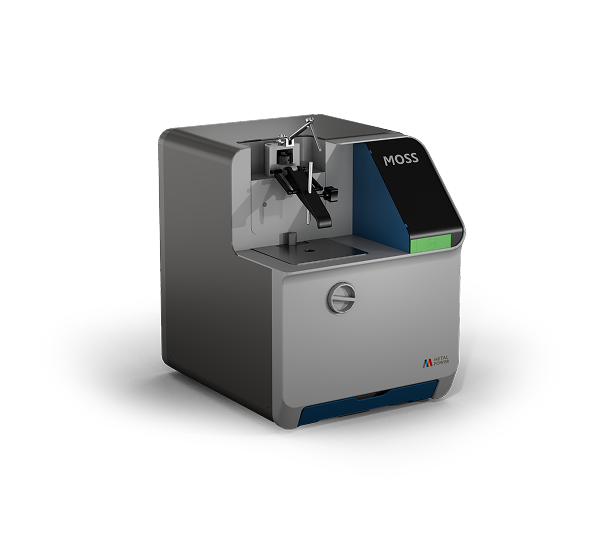

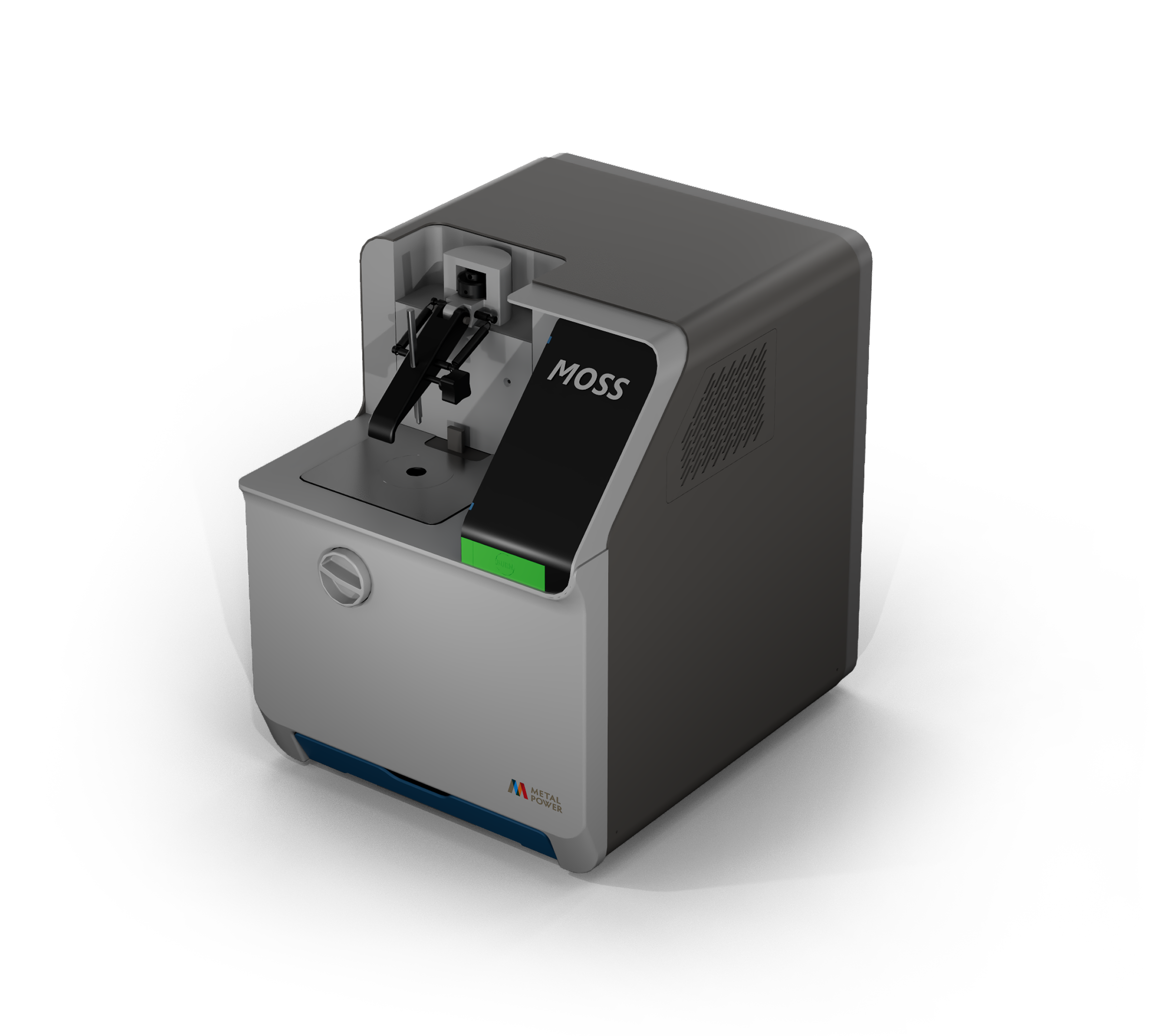

MOSS: Compact and Affordable
The world's most economical, yet truly scalable, Optical Emission Spectrometer for elemental analysis down to ≤50 ppm
Download brochure
Get Support
Highlights of MOSS
Analysis in less than 30 seconds

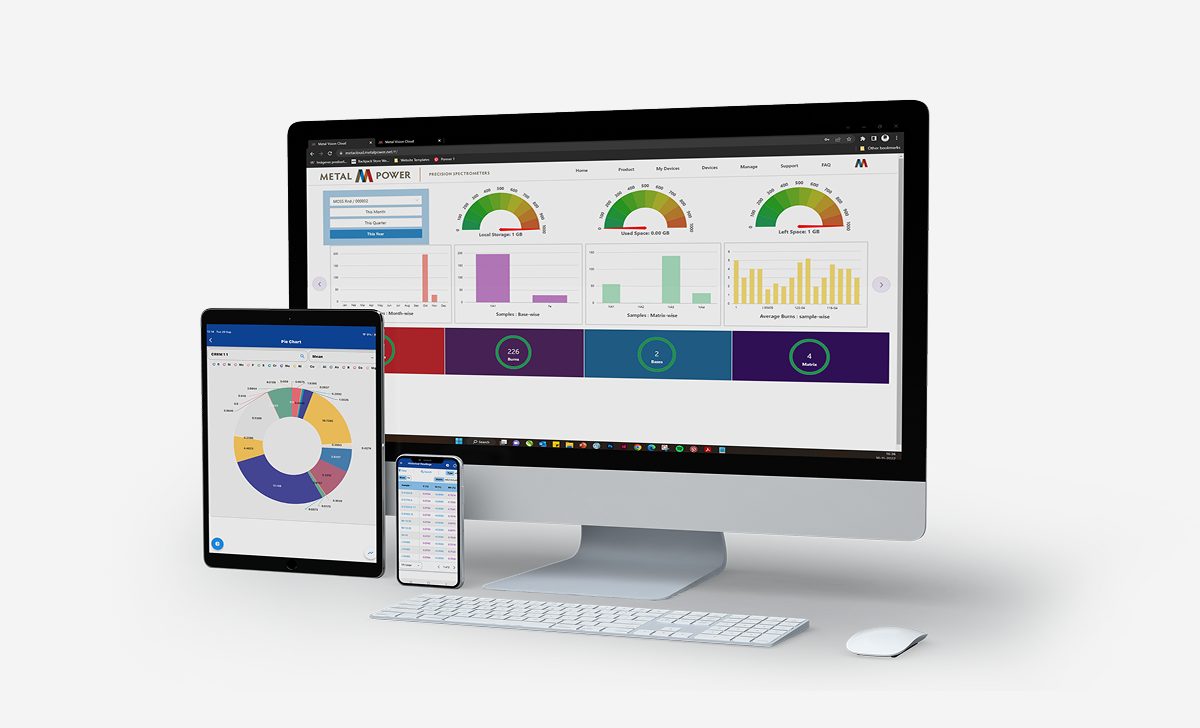

Mobile application for omnipresent OES data access
LIMS integration for structured data management and workflow
Charge calculation and correction to maximise efficiency
Single SUS smart standardisation in less than 5 mins
Easy grade identification, pass/fail with 350,000+ grades’ library
Optimised use with 2000+ burns/cylinder
Features of MOSS
Special Applications of MOSS
MOSS enables users to resolve the widest range of applications across various industries, ensuring high accuracy, reliability, and repeatability.
Wire & wire-rods
3 mm diameter
Mini samples
4 mm to 13 mm sample fit diameter
Ecosystem
A comprehensive ecosystem for your Optical Emission Spectrometer.

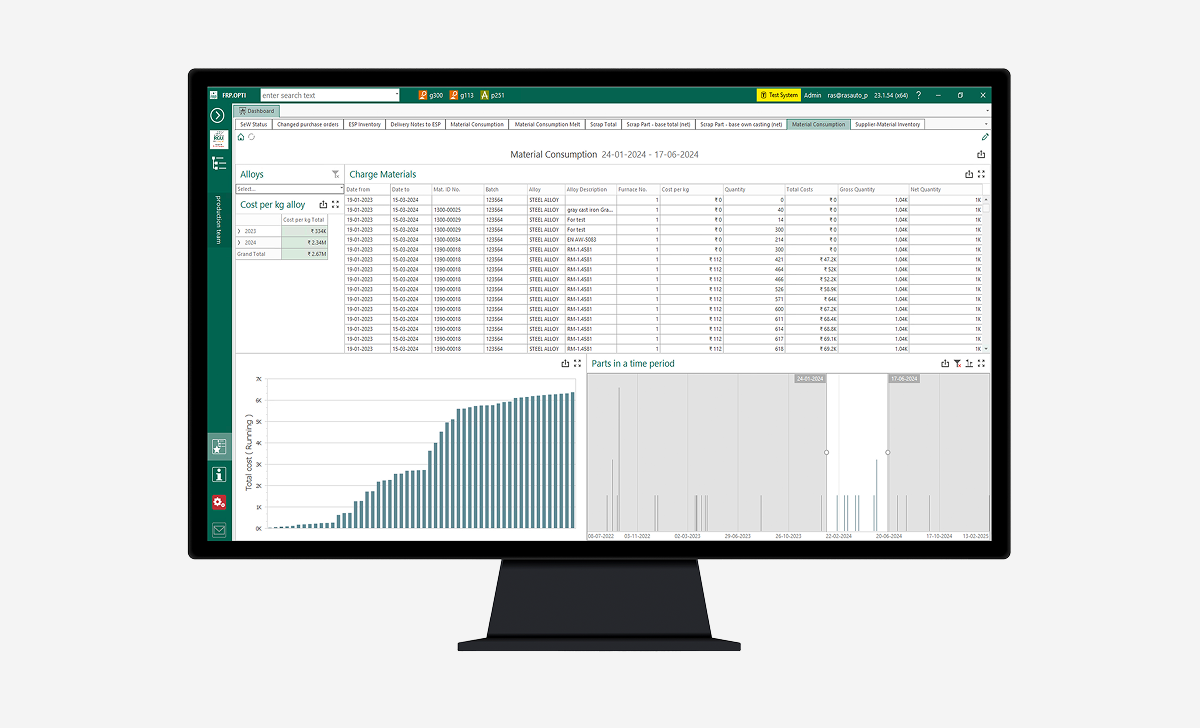

Charge Correction
Enhance your melt recipe in real-time with melt process optimisation tool.

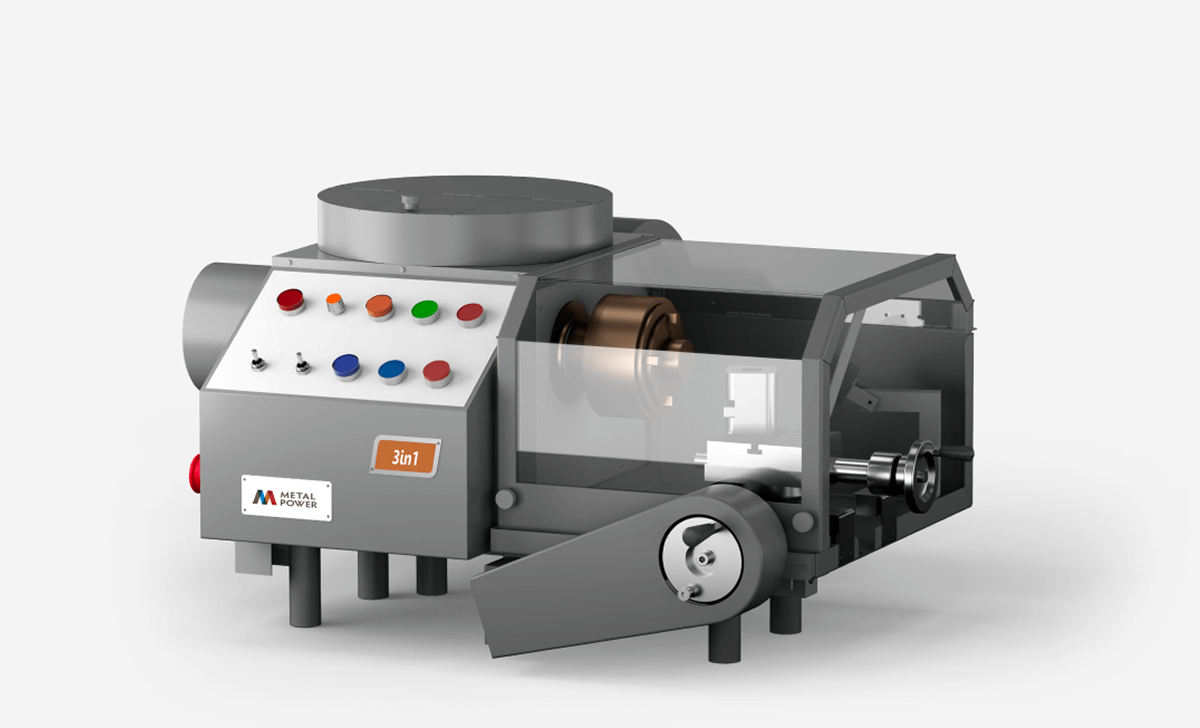

Sample Preparation Machine
Sample preparation machine for grinding, polishing, turning, and electrode pointing in ferrous and non-ferrous applications.

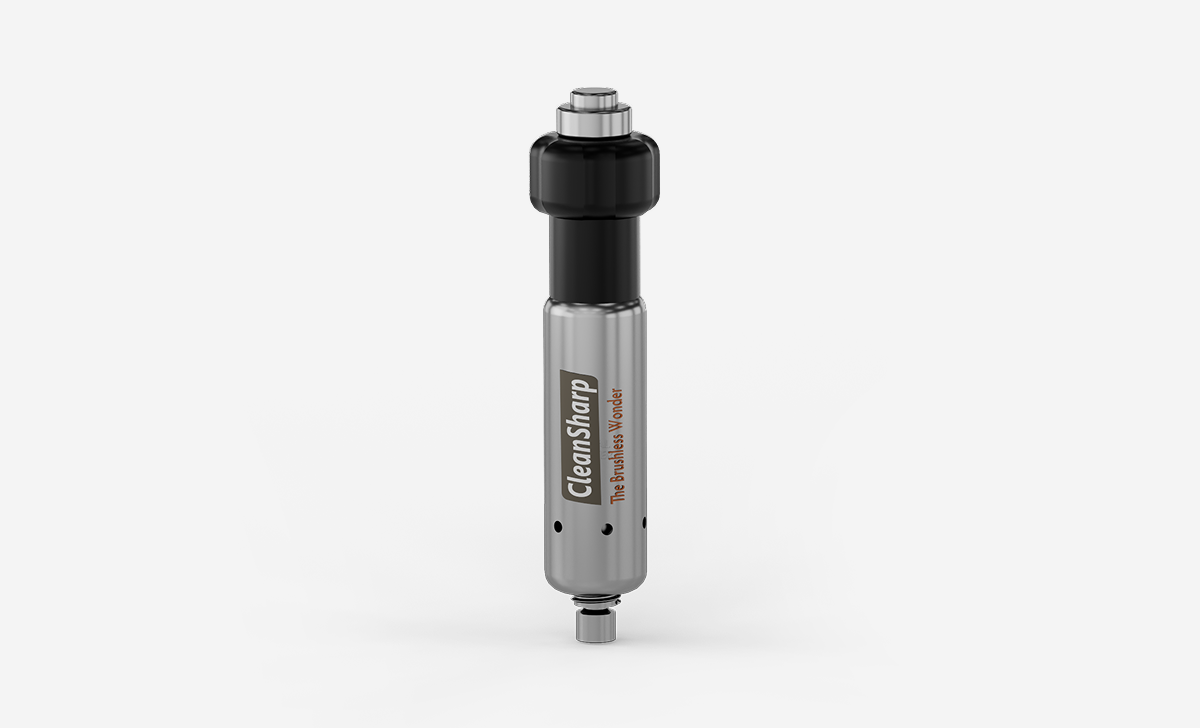

CleanSharp
Brushless electrode cleaner-sharpener to make the electrode tip cleaning and pointing easy, safe, and swift.

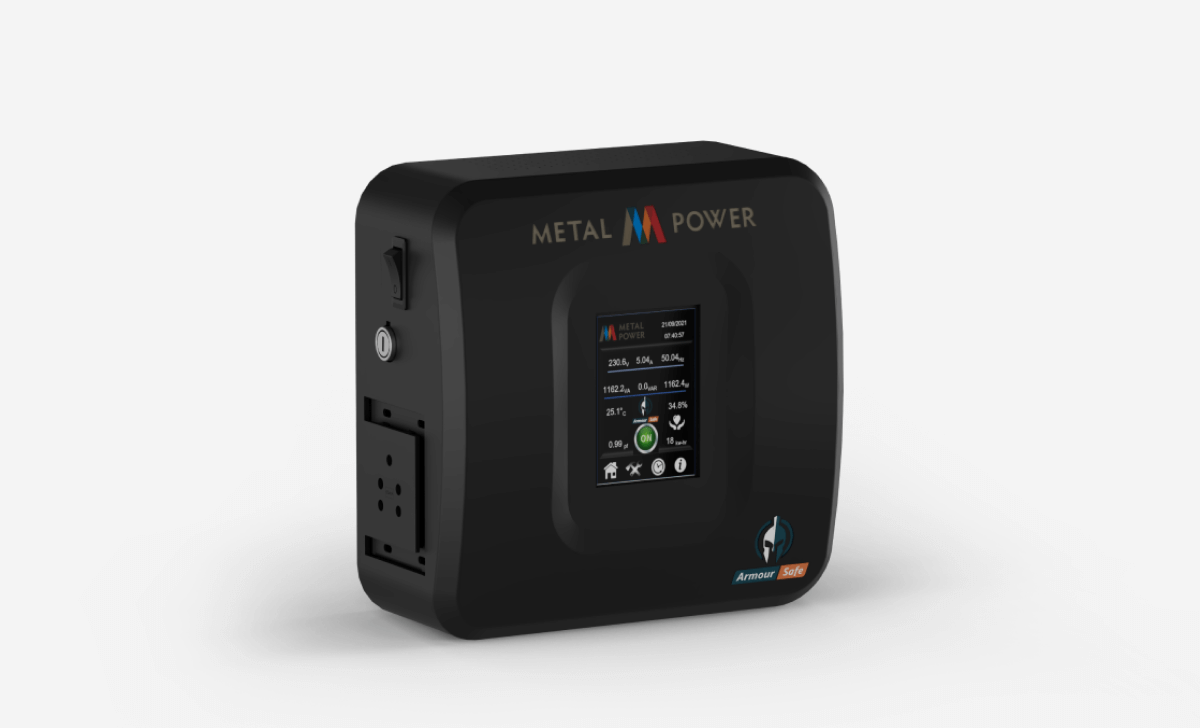

ArmourSafe
Protect your OES against unstable power and temperature for optimal performance.
Tech Specifications of MOSS
General
Technology
Arc/Spark Optical Emission

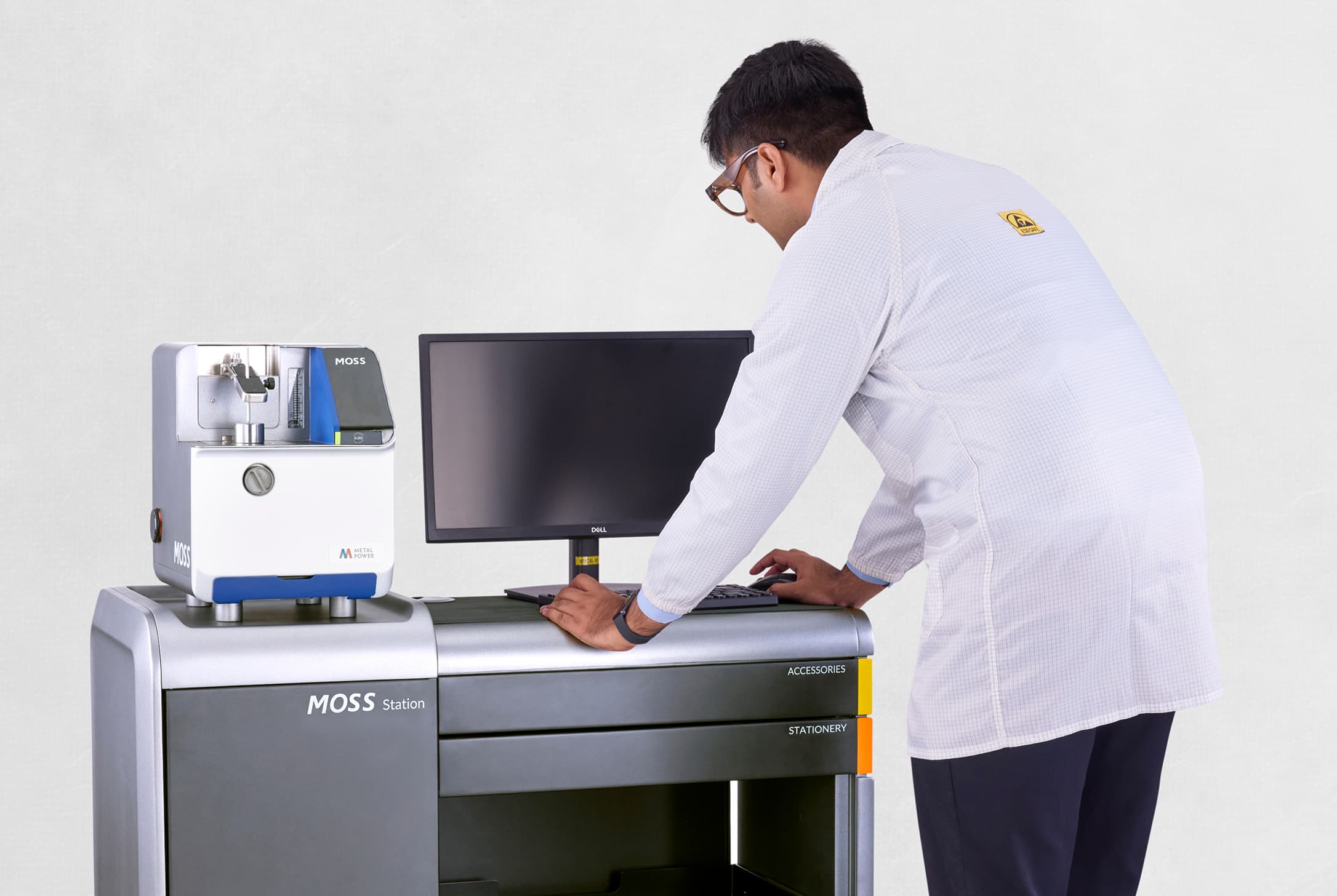

Form Factor Options
Benchtop/Floor-standing
Optics
Configuration
Vacuum-free optics
Design
Flat-field design to minimise spectral distortion
Detector Type
CCD
Detector Arrangement
Single-detector
Wavelength Coverage
Patented
Focal Length
Patented
Grating (grooves/mm)
Patented
Reciprocal Linear Dispersion
8.3 nm/mm
Construction
Argon purged
Peltier Cooled Optics
No
Internal Argon Purification
N/A
Automated Profiling
Yes
Thermal Stabilization
Yes
Excitation Source
Type
Fully Digital PWM
Control Metric
Current-controlled
Max. Discharge Frequency (Hz)
1,000
Input Voltage range
90-270 VAC
Frequency
50/60 Hz
Spark Chamber
Type
Open stand
Electrode Flow type
Jet flow
Automatic Sample Detection
Available
Electrode
Tungsten
Quick Release Spark Plate
No
Electronics
Readout System
12-bit ADC
Computer Interface
USB
Applications
Available Factory Calibrations
Ferrous, Aluminium, Copper, Nickel, Lead, Tin, and Zinc
Alloy Programs
Individual alloy programs for all of the above
Analysis Features
Elemental Coverage
30+
Time Resolved Spectroscopy (TRS)
No
Purity Analysis
99.9%+
Hydrogen (H) in Ti
No
Oxygen (O) in Fe, Cu, Ti & Ni
No
Nitrogen (N) in Steels
Yes
Soluble-Insoluble in Steels (Al, Ti, B, Ca)
No
Sodium (Na) & Lithium (Li) in Aluminium
No
RoHS Elements (Pb, Hg, Cd)
No
Standardisation/Re-calibration
Smart STD (Single-sample Technique)
Special Applications
Ultra-Fine Wire Analysis
No
Thin Foil Analysis
No
Thin Sheet Analysis
Yes
Side-On Wire Analysis
Yes
Wire Rod Analysis
Yes
Small-Sized Sample Analysis
Yes
Physical Dimensions and Weights
Size (Benchtop)
330mm (L) x 270mm (W) x 340mm (H)
Weight (Benchtop)
~22 Kgs
Size (Floor-Standing)
490mm (L) x 1000mm (W) x 760mm (H)
Weight (Floor-Standing)
~100kG
Environmental Conditions
Operating Temperature
18 - 35˚C
Storage Temperature
-10 - 50˚C
Relative Humidity
20 - 80% (Non-condensing)
Accessories and Add-Ons
Sample Preparation Machines
Yes
Armour Safe (Safety Module)
Yes

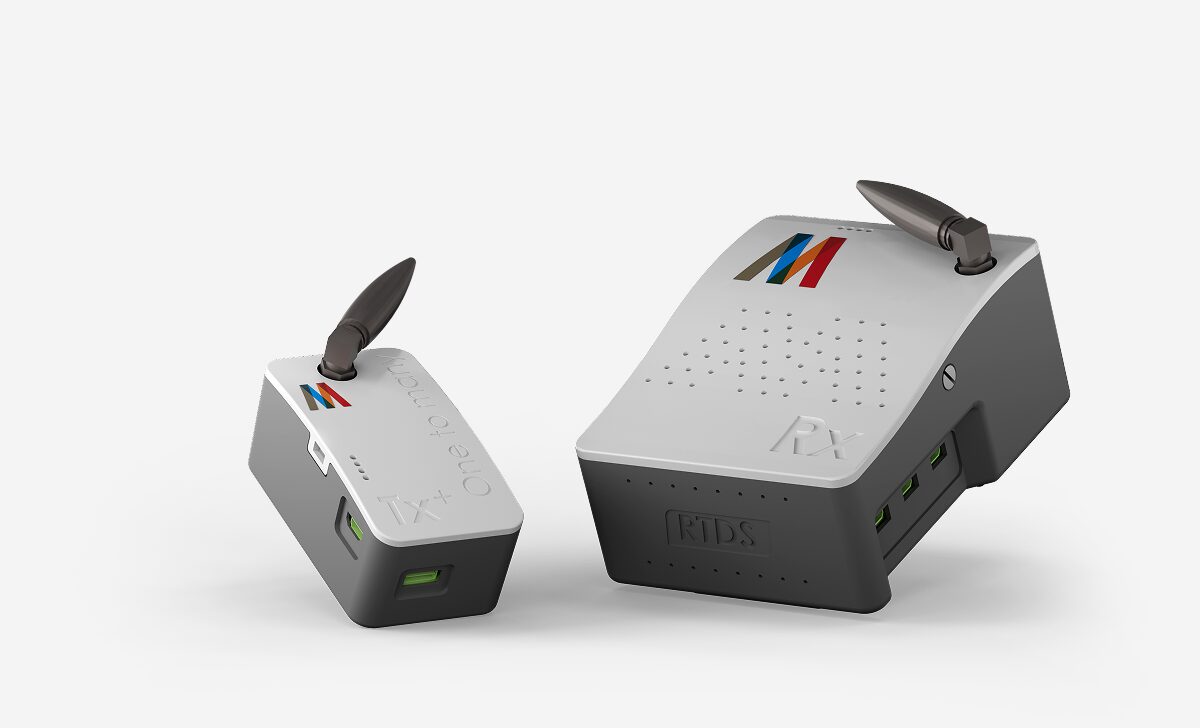

WirelessRTDS (One-to-One Display Transmitter)
Yes
WirelessRTDS (One-to-Many Display Transmitter)
Yes
Mobile Application
Yes

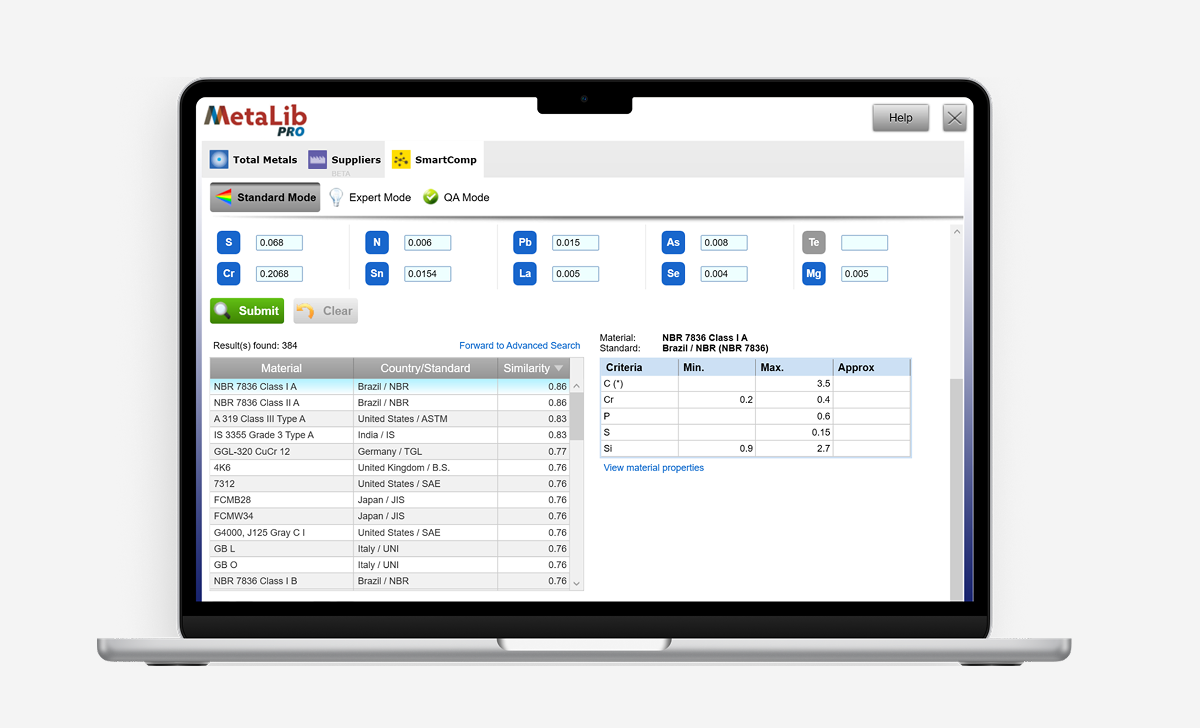

MetaLib Pro - Grades Library
Yes
CleanSharp
Yes
Argon Regulator (Dual-stage)
Yes
Unit Pedestal
Yes
PC Pedestal
N/A
Certifications and Compliance
Regulatory Certifications
CE Certified
Test Method References
ASTM, DIN
Colour Options
Model Colour Options
Cool Grey
