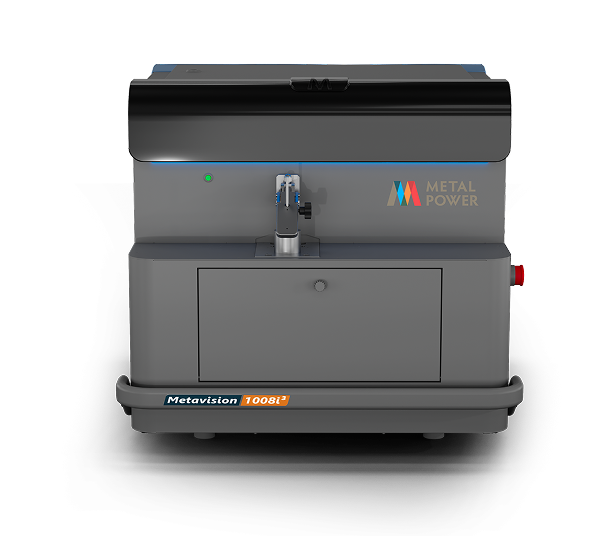

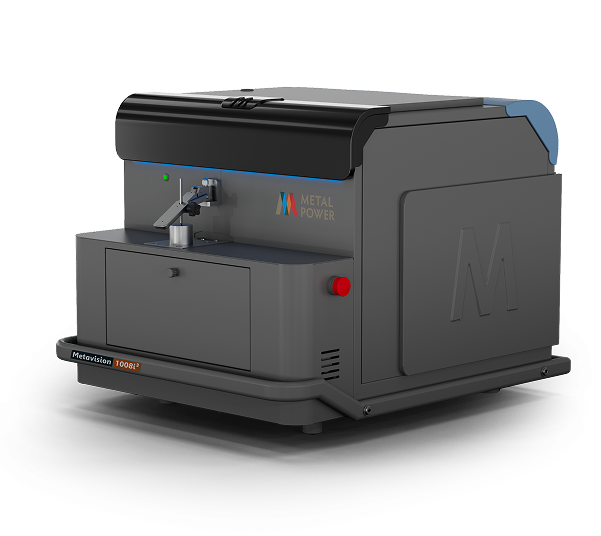

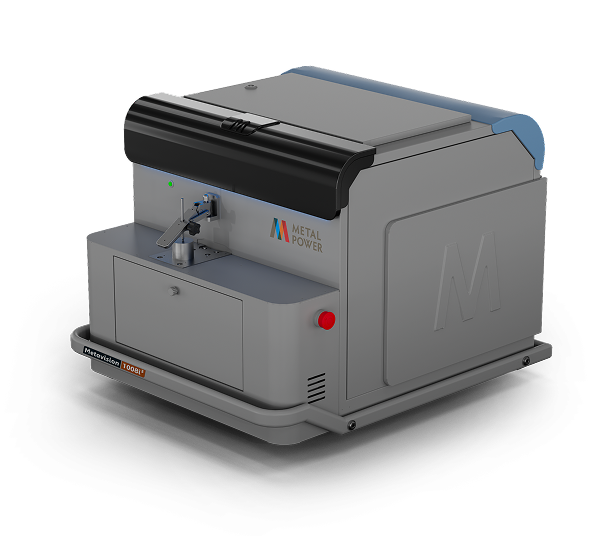

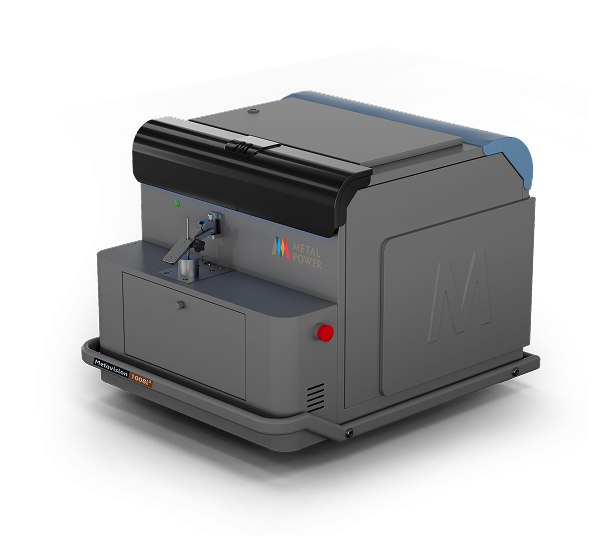

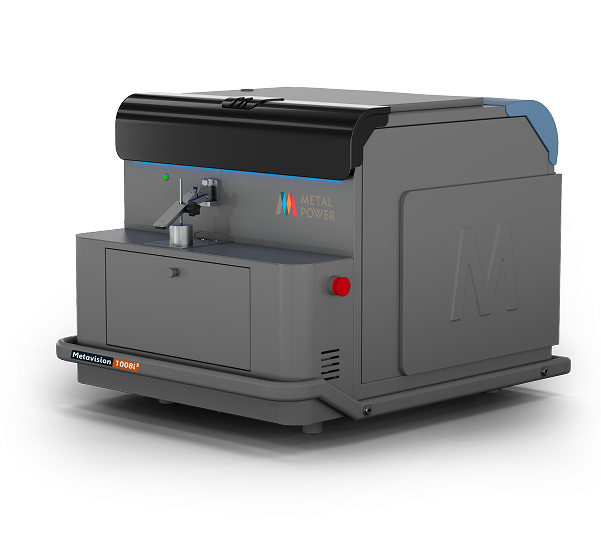

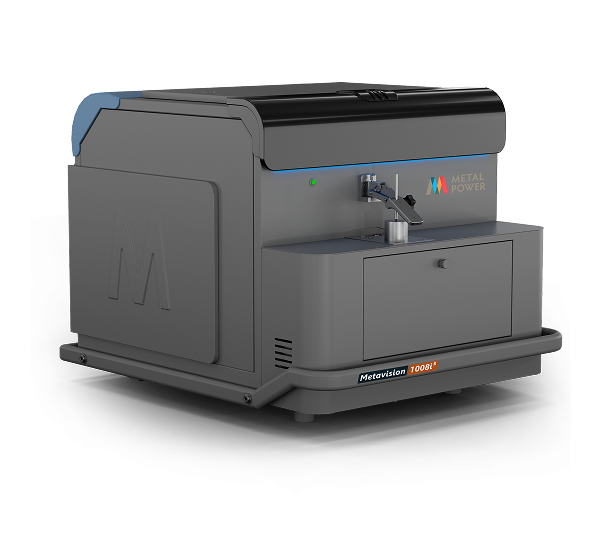

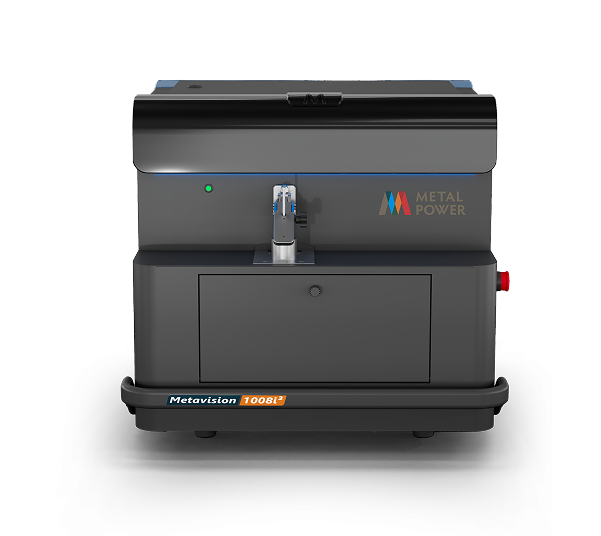

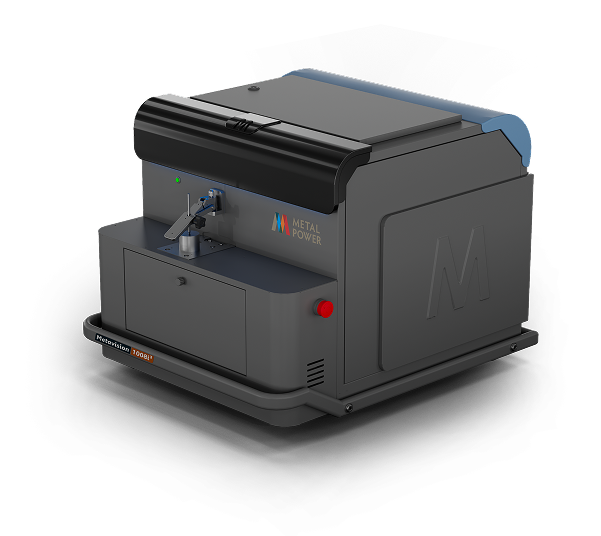

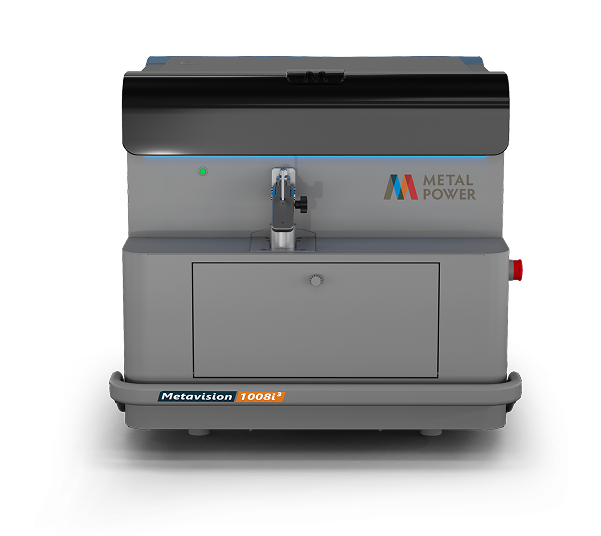

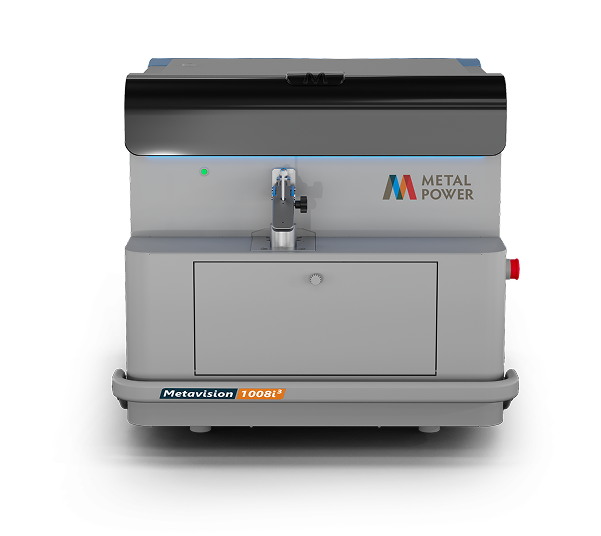

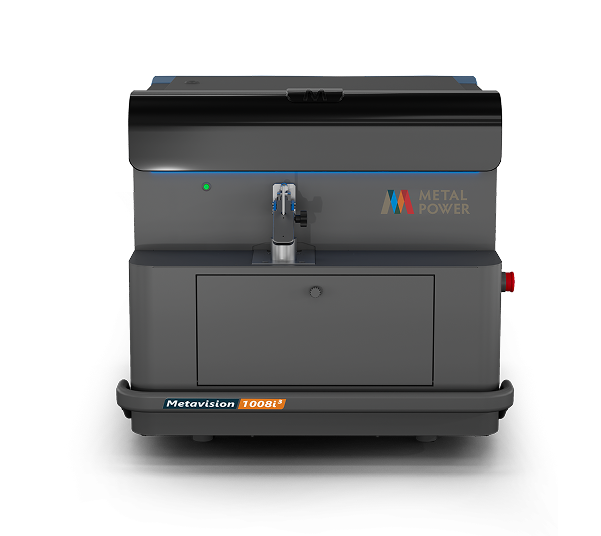

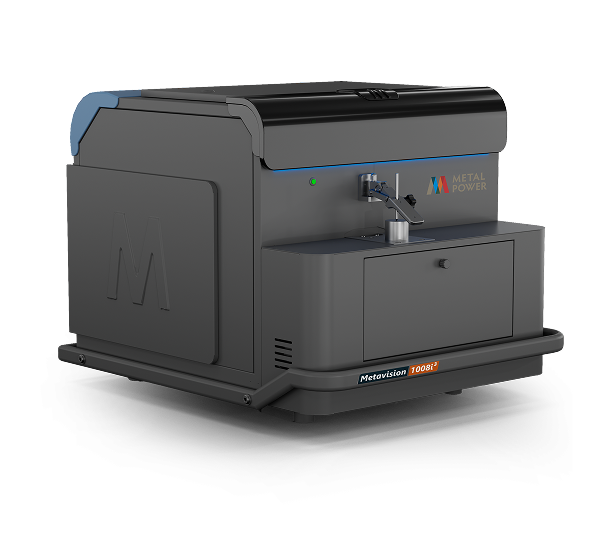

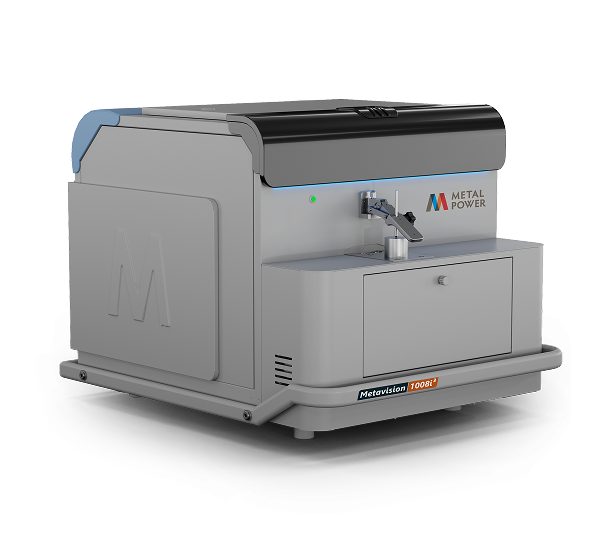

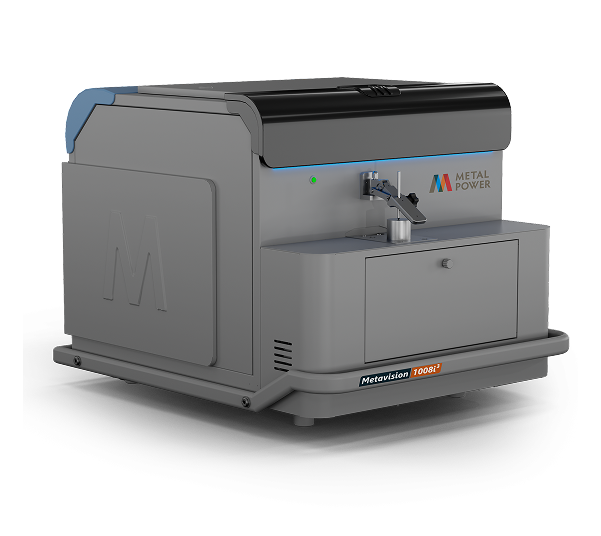

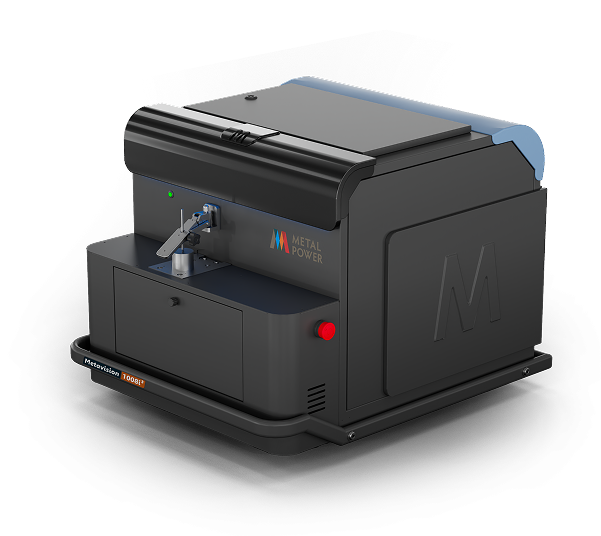

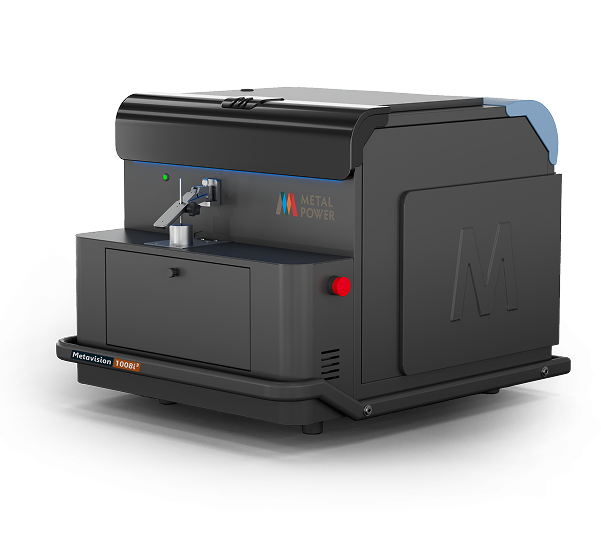

Metavision-1008i3: When excellence is not good enough
Advanced Optical Emission Spectrometer for accurate elemental analysis down to low and single-ppm detection limits.
Download brochure
Get Support

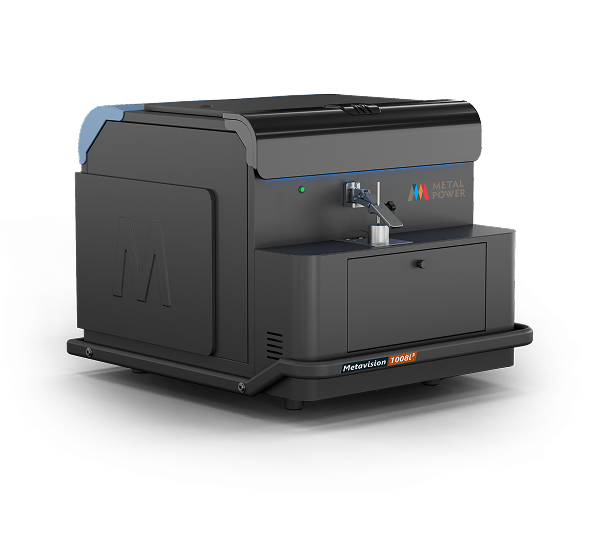

Matte Black
Space Grey
Classic Grey

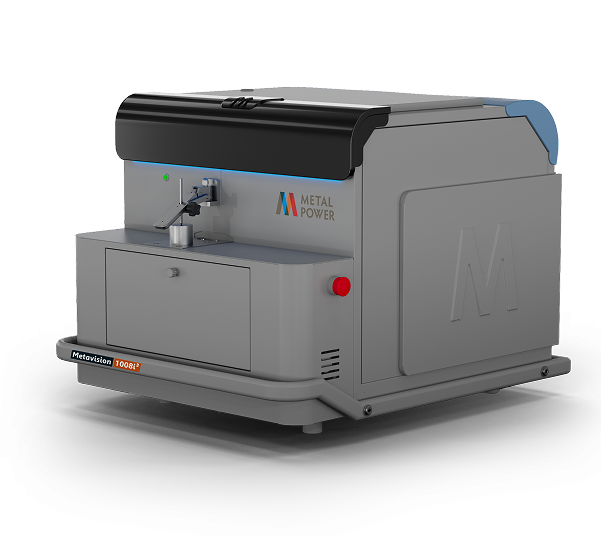

Cool Grey

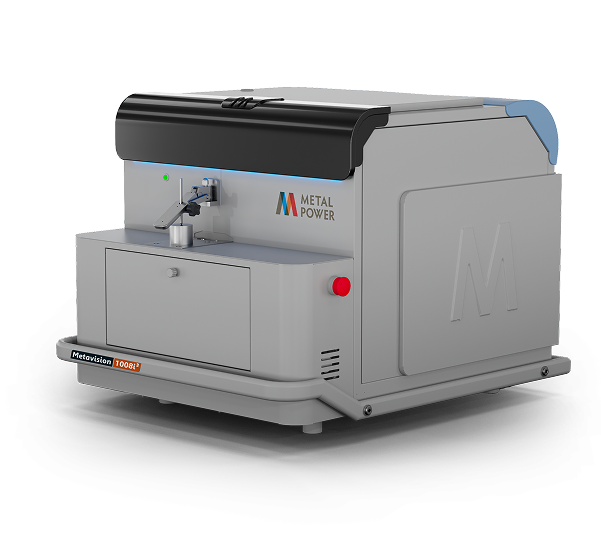

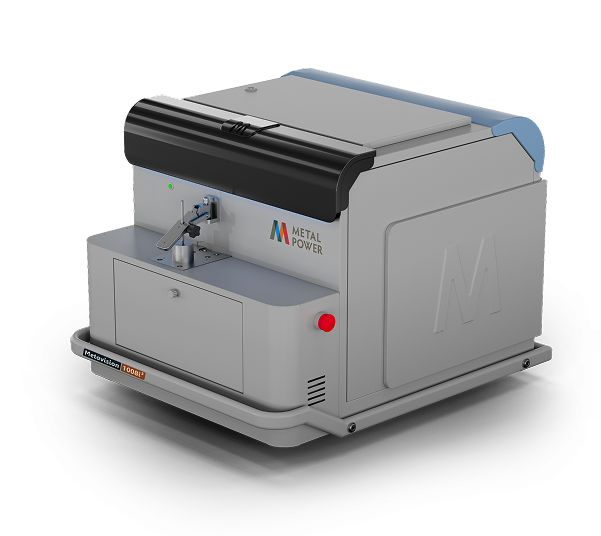

Warm Grey
Highlights
Analyse 60+ elements in standard calibration, including low N, O, C, H, etc.
Low & single PPM detection limits
Hermetically sealed, cooled dual optics
Multi-stage internal argon repurification for the DUV optics
Current controlled digital PWM source for plasma generation
Soluble-insoluble analysis (Al, Ti, B, Ca, etc.)
Single-sample re-standardisation/re-calibration
Features
Special
Applications
The Metavision-1008i3 enables users to resolve the widest range of applications across various industries, ensuring high accuracy, reliability, and repeatability.

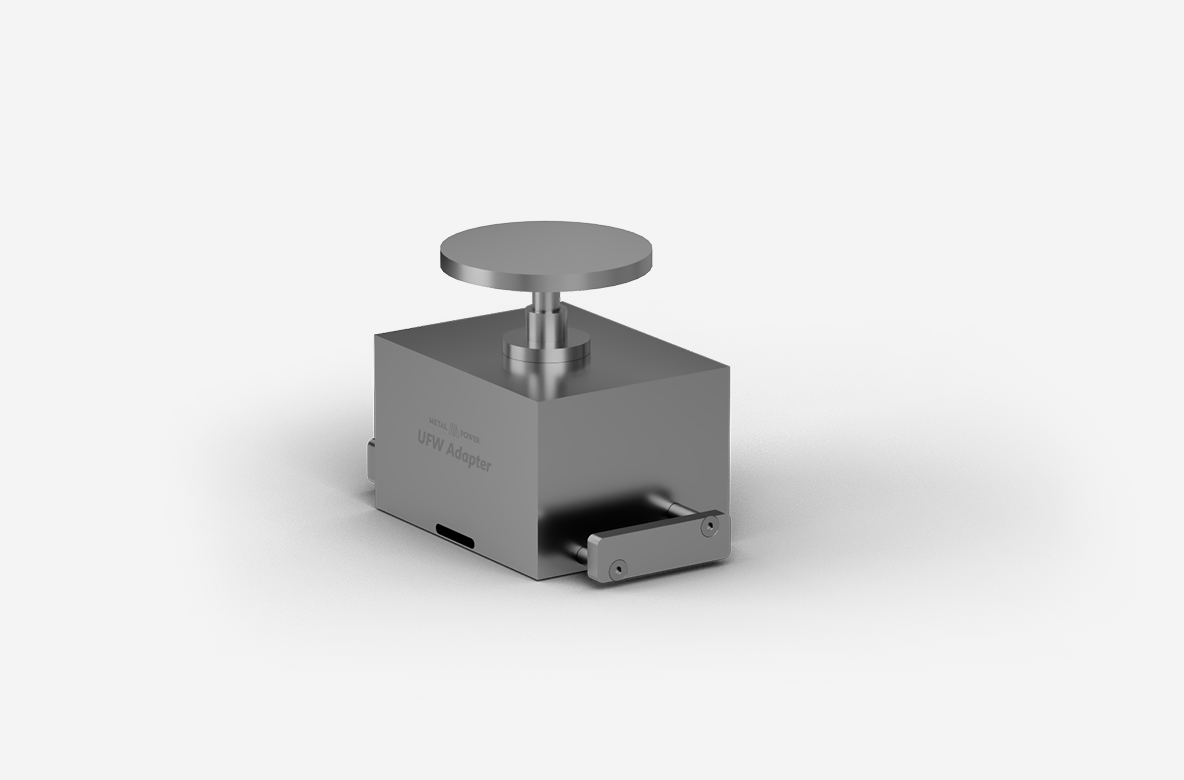

Ultra-fine wires
0.1 mm to 3 mm diameter

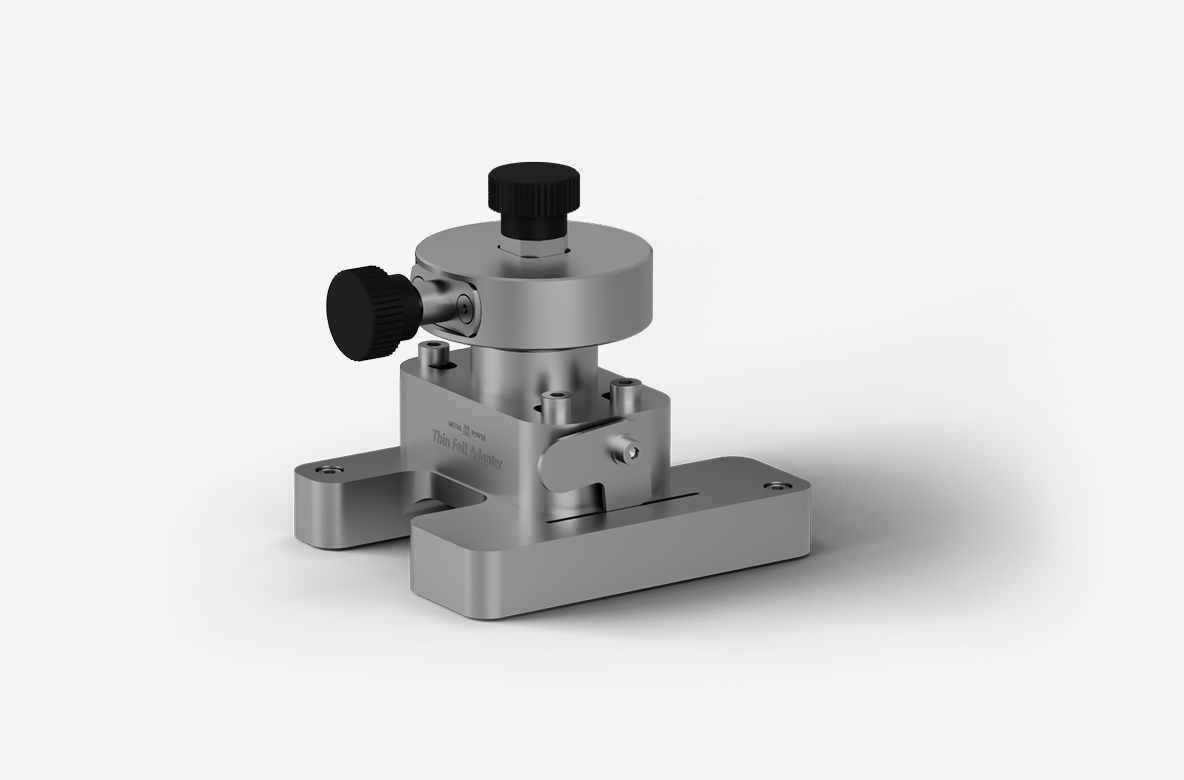

Thin foils
0.1 mm to 1 mm thickness

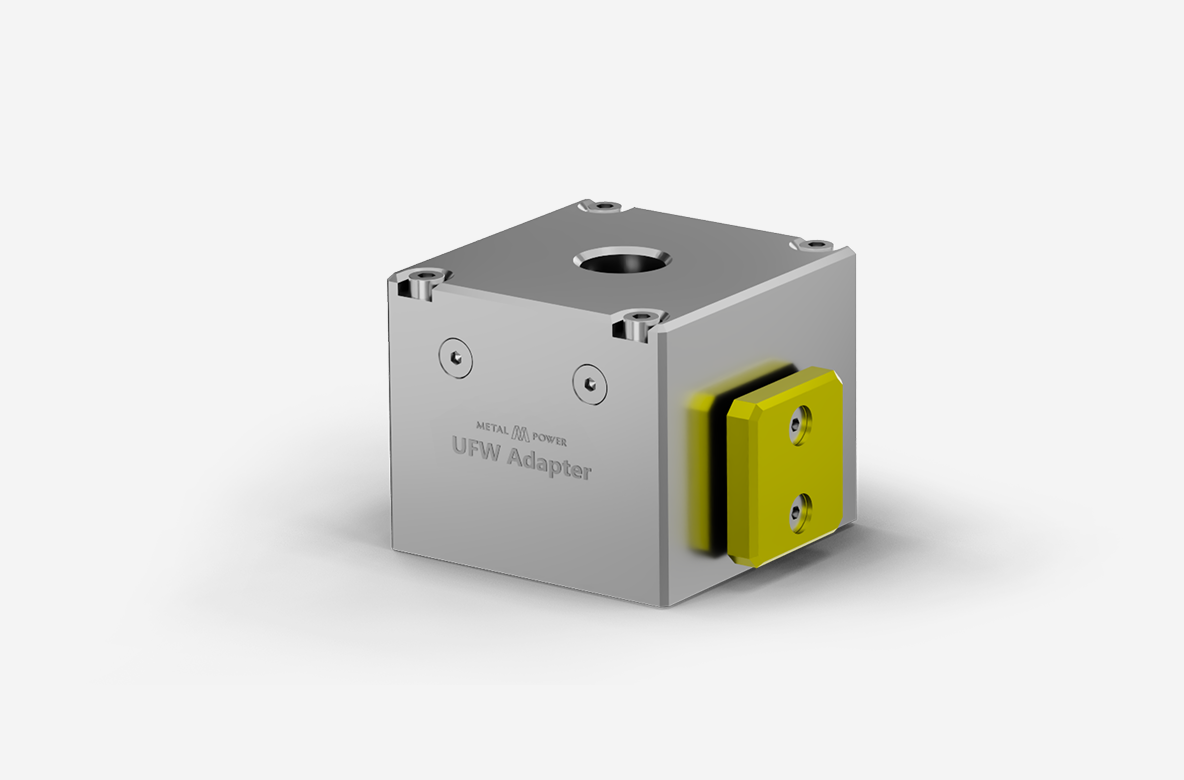

Wire rods
3 mm to 13 mm diameter

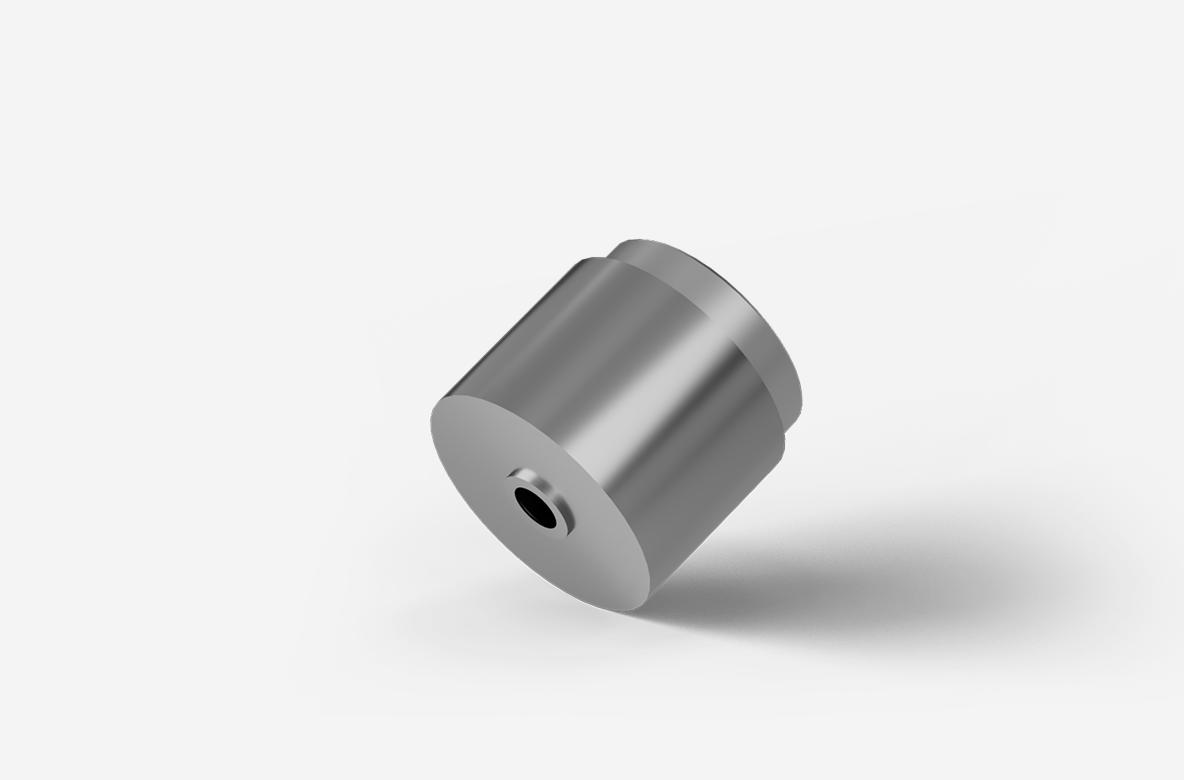

Mini samples
4 mm to 13 mm sample fit diameter

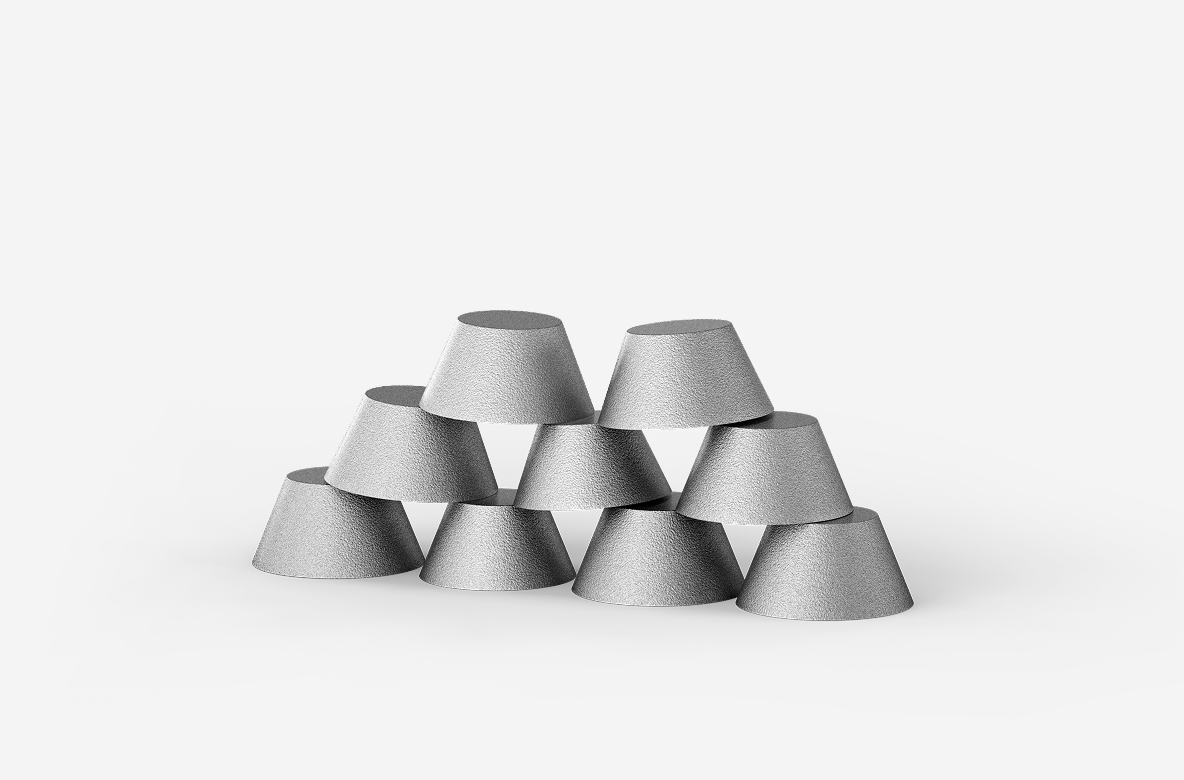

Master alloys
Ultra-high concentration of key alloying elements
Ecosystem
A comprehensive ecosystem for your Optical Emission Spectrometer.
Charge Correction
Enhance your melt recipe in real-time with melt process optimisation tool.
Sample Preparation Machine
Sample preparation machine for grinding, polishing, turning, and electrode pointing in ferrous and non-ferrous applications.
CleanSharp
Brushless electrode cleaner-sharpener to make the electrode tip cleaning and pointing easy, safe, and swift.

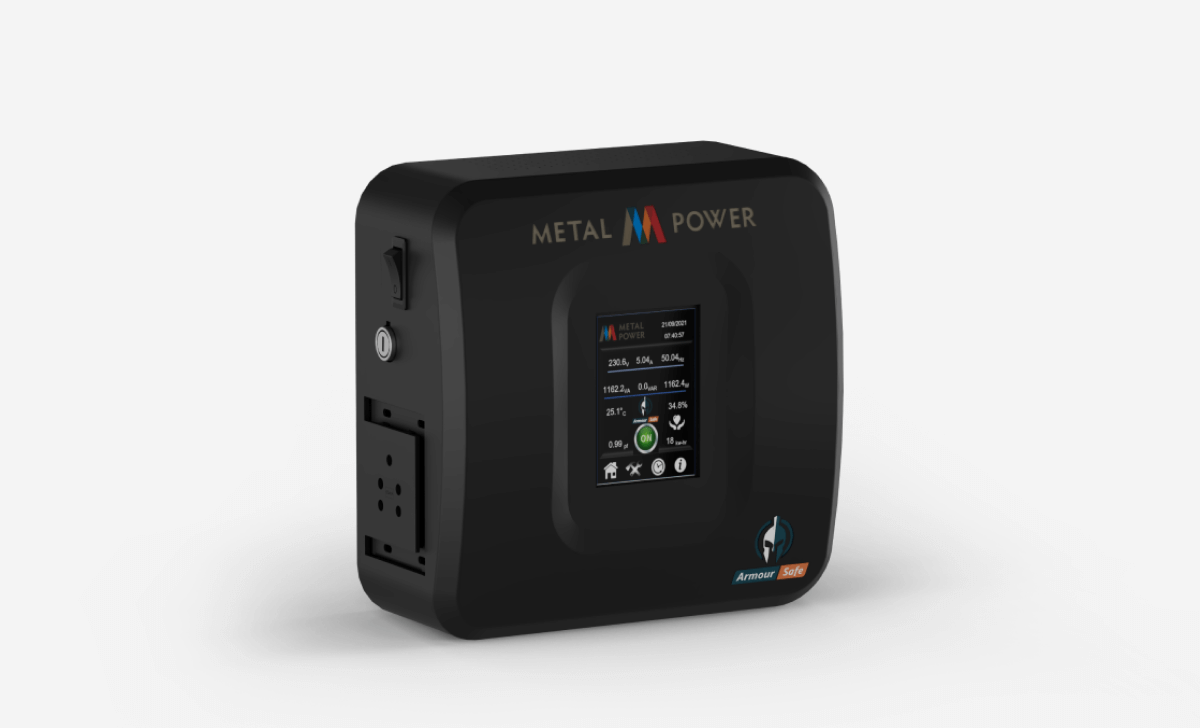

ArmourSafe
Protect your OES against unstable power and temperature for optimal performance.
Tech Specs
General
Technology
Arc/Spark Optical Emission
Form Factor Options
Benchtop/Floor-standing
Optics
Configuration
Dual vacuum-free optics
Design
Rowland Circle with Paschen-Runge mountings
Detector Type
CMOS/CCD
Detector Arrangement
Multi-Detector Array
Wavelength Coverage
118-671 nm (optionally to 800nm)
Focal Length
400 mm
Grating (grooves/mm)
3,600 & 2,400
Reciprocal Linear Dispersion
0.8 nm/mm
Construction
Hermetically sealed
Peltier Cooled Optics
Yes
Internal Argon Purification
Multi-stage purification
Automated Profiling
Yes
Thermal Stabilization
Yes
Excitation Source
Type
Fully Digital PWM
Control Metric
Current-controlled
Max. Discharge Frequency (Hz)
1,000
Input Voltage range
90-270 VAC
Frequency
50/60 Hz
Spark Chamber
Type
Open stand
Electrode Flow type
Jet flow
Automatic Sample Detection
Available
Electrode
Tungsten
Quick Release Spark Plate
Yes
Electronics
Readout System
16-bit ADC
Computer Interface
Ethernet
Applications
Available Factory Calibrations
Ferrous, Aluminium, Copper, Nickel, Lead, Tin, Zinc, Titanium, Magnesium, Cobalt, Zirconium and Silver
Alloy Programs
Individual alloy programs for all of the above
Analysis Features
Elemental Coverage
60+
Time Resolved Spectroscopy (TRS)
Yes
Purity Analysis
99.995%+
Hydrogen (H) in Ti
Yes
Oxygen (O) in Fe, Cu, Ti & Ni
Yes
Nitrogen (N) in Steels
Yes
Soluble-Insoluble in Steels (Al, Ti, B, Ca)
Yes
Sodium (Na) & Lithium (Li) in Aluminium
Yes
RoHS Elements (Pb, Hg, Cd)
Yes
Standardisation/Re-calibration
Smart STD (Single-sample Technique)
Special Applications
Ultra-Fine Wire Analysis
Yes
Thin Foil Analysis
Yes
Thin Sheet Analysis
Yes
Side-On Wire Analysis
Yes
Wire Rod Analysis
Yes
Small-Sized Sample Analysis
Yes
Physical Dimensions and Weights
Size (Benchtop)
920mm (L) x 760mm (W) x 685mm (H)
Weight (Benchtop)
~98 Kgs

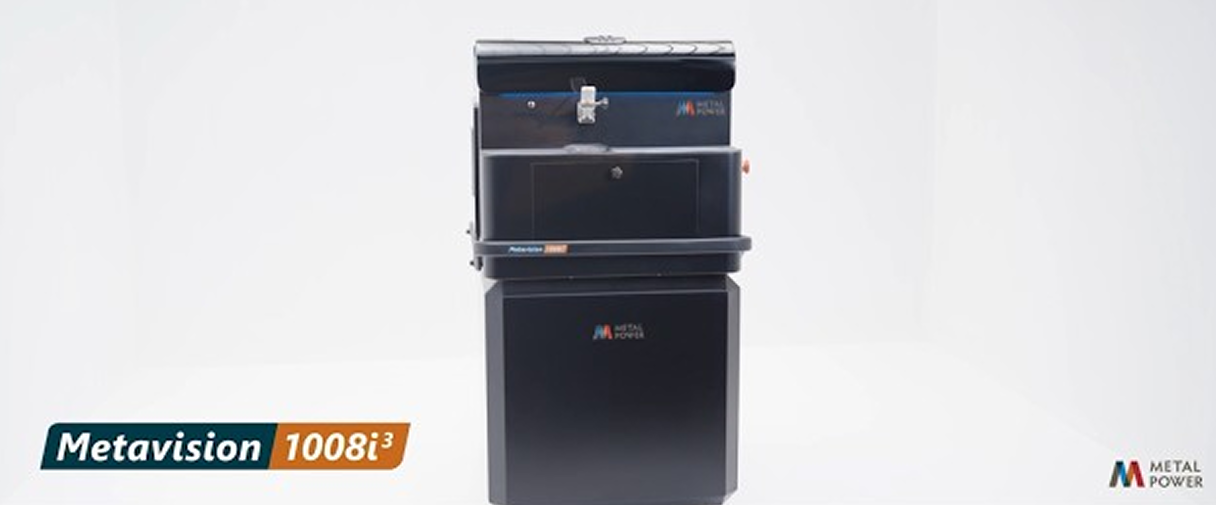

Size (Floor-Standing)
920mm (L) x 760mm (W) x 1360mm (H)
Weight (Floor-Standing)
~210 Kgs
Environmental Conditions
Operating Temperature
18 - 35˚C
Storage Temperature
-10 - 50˚C
Relative Humidity
20 - 80% (Non-condensing)
Accessories and Add-Ons
Sample Preparation Machines
Yes
Armour Safe (Safety Module)
Yes

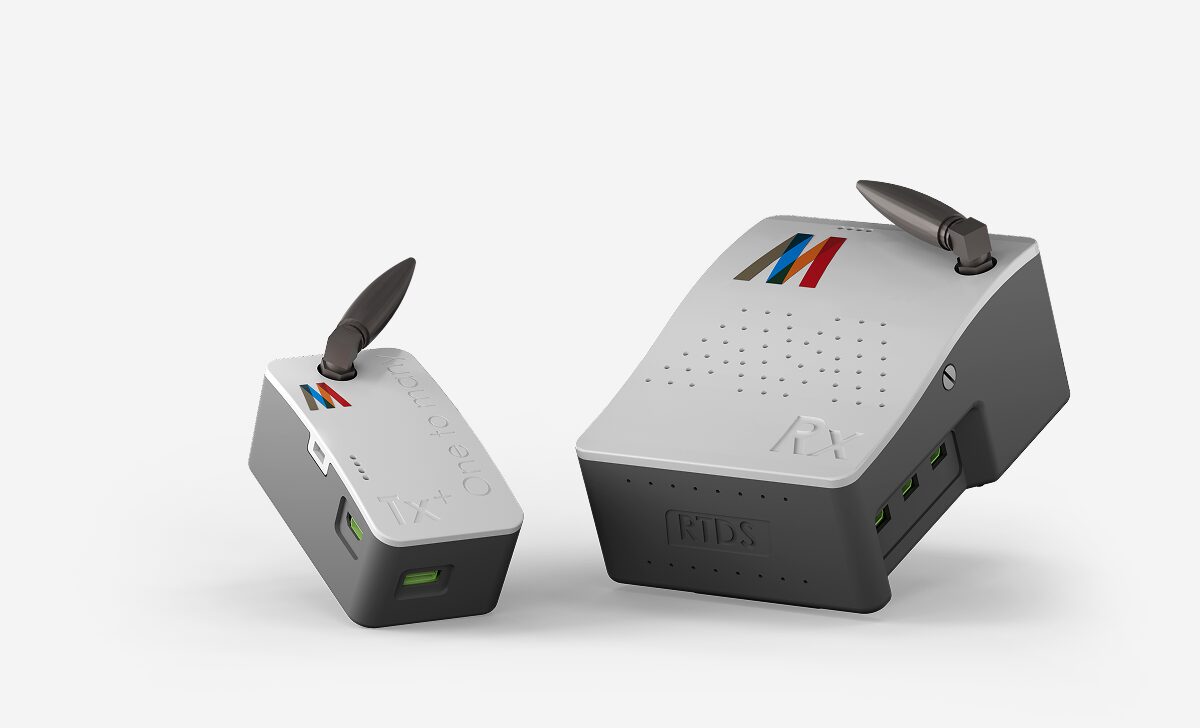

WirelessRTDS (One-to-One Display Transmitter)
Yes
WirelessRTDS (One-to-Many Display Transmitter)
Yes

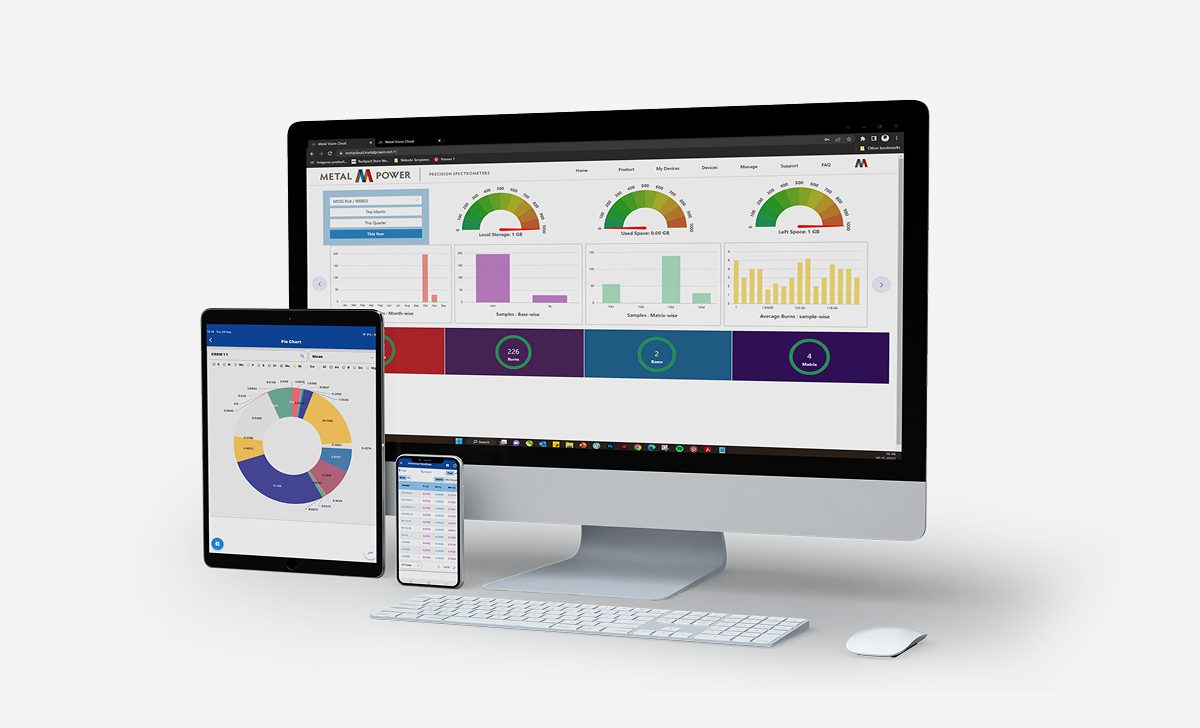

Mobile Application
Yes

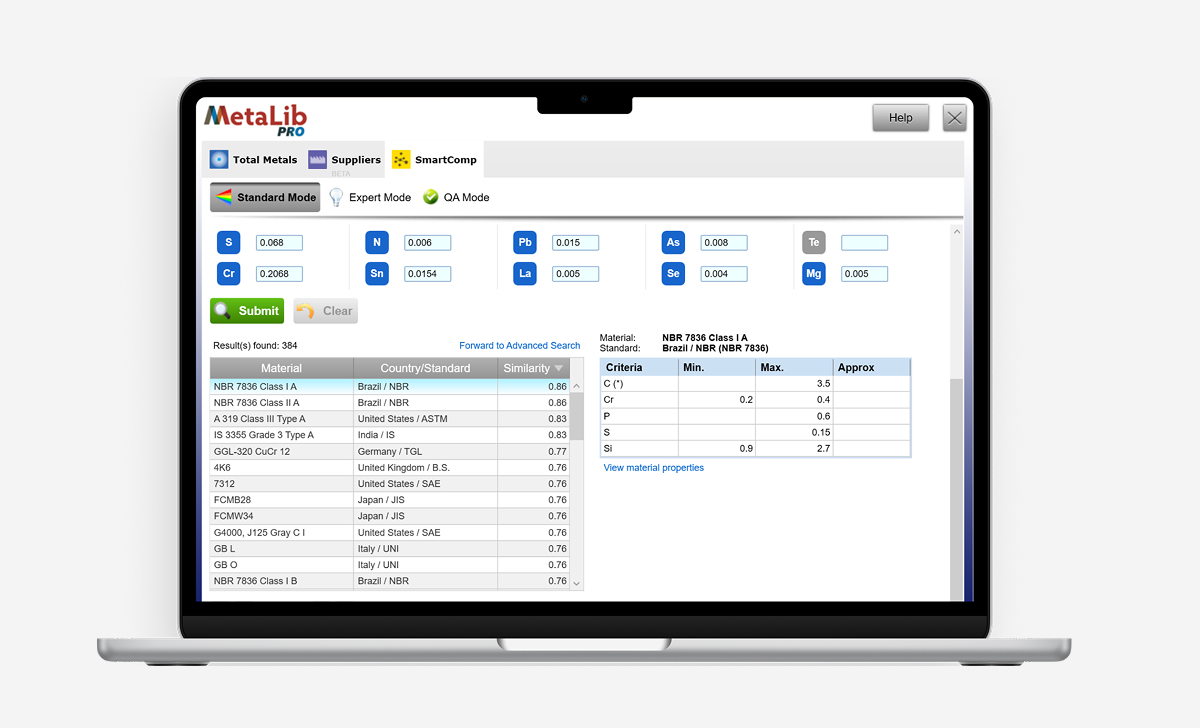

MetaLib Pro - Grades Library
Yes
CleanSharp
Yes
Argon Regulator (Dual-stage)
Yes
Unit Pedestal
Yes
PC Pedestal
Yes
Certifications and Compliance
Regulatory Certifications
CE Certified
Test Method References
ASTM, DIN
Colour Options
Model Colour Options
Warm Grey
Cool Grey
Classic Grey
Space Grey
Matte Black
Cool Grey
Classic Grey
Space Grey
Matte Black
More Details
Reach out to us at marketing@metalpower.net to learn more about the Metavision-1008i3 accurate analysis for over 60 elements across Ferrous and Non-Ferrous applications, including the capability to measure gaseous elements like Oxygen, Nitrogen, and Hydrogen, along with the soluble and insoluble elements in Steels.
