Metavision-10008X:
The Zenith of Sensitivity
Laboratory grade Optical Emission Spectrometer for accurate elemental analysis down to single- and sub-ppm detection limit.
Download brochure
Get Support

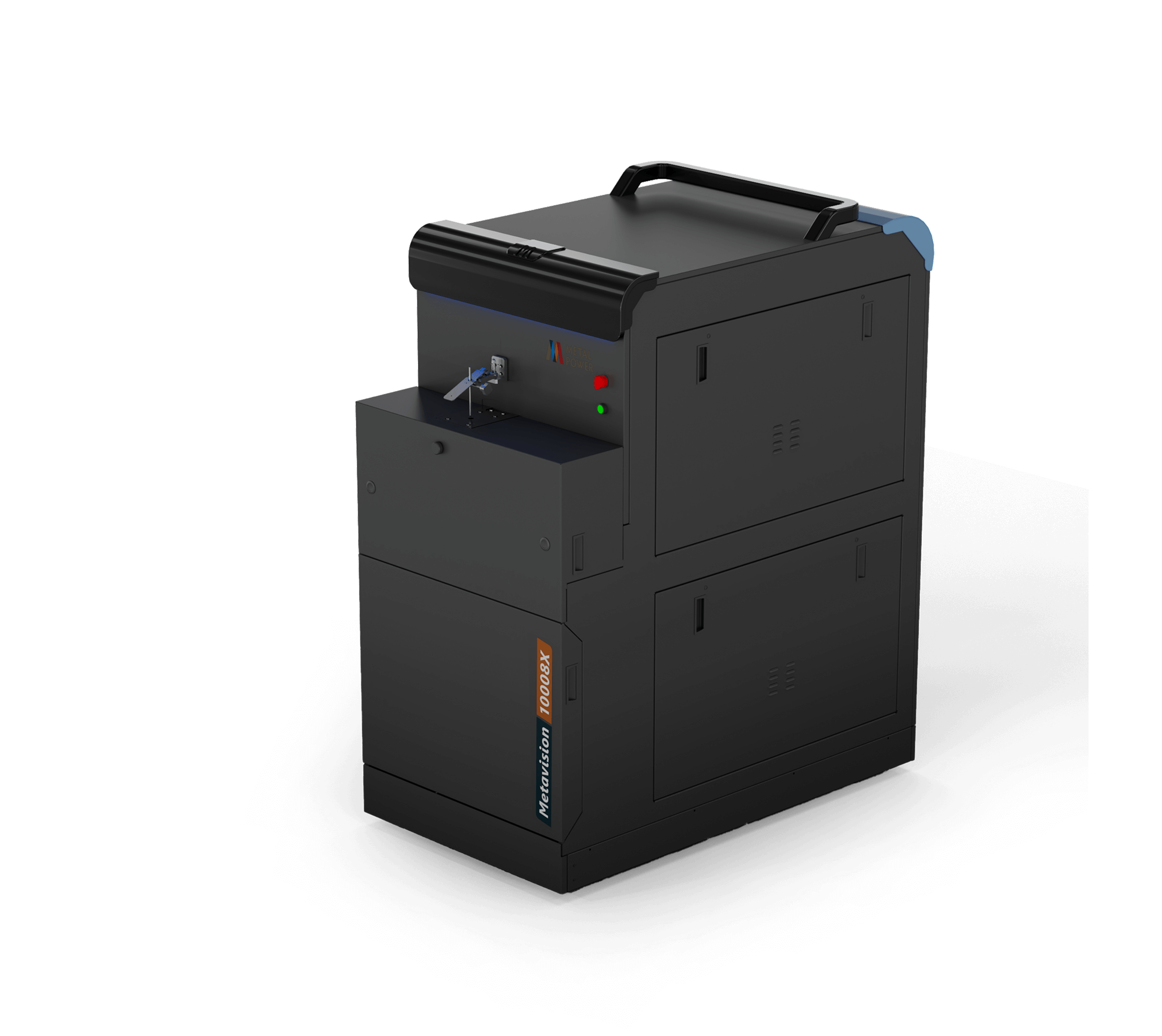

Matte Black

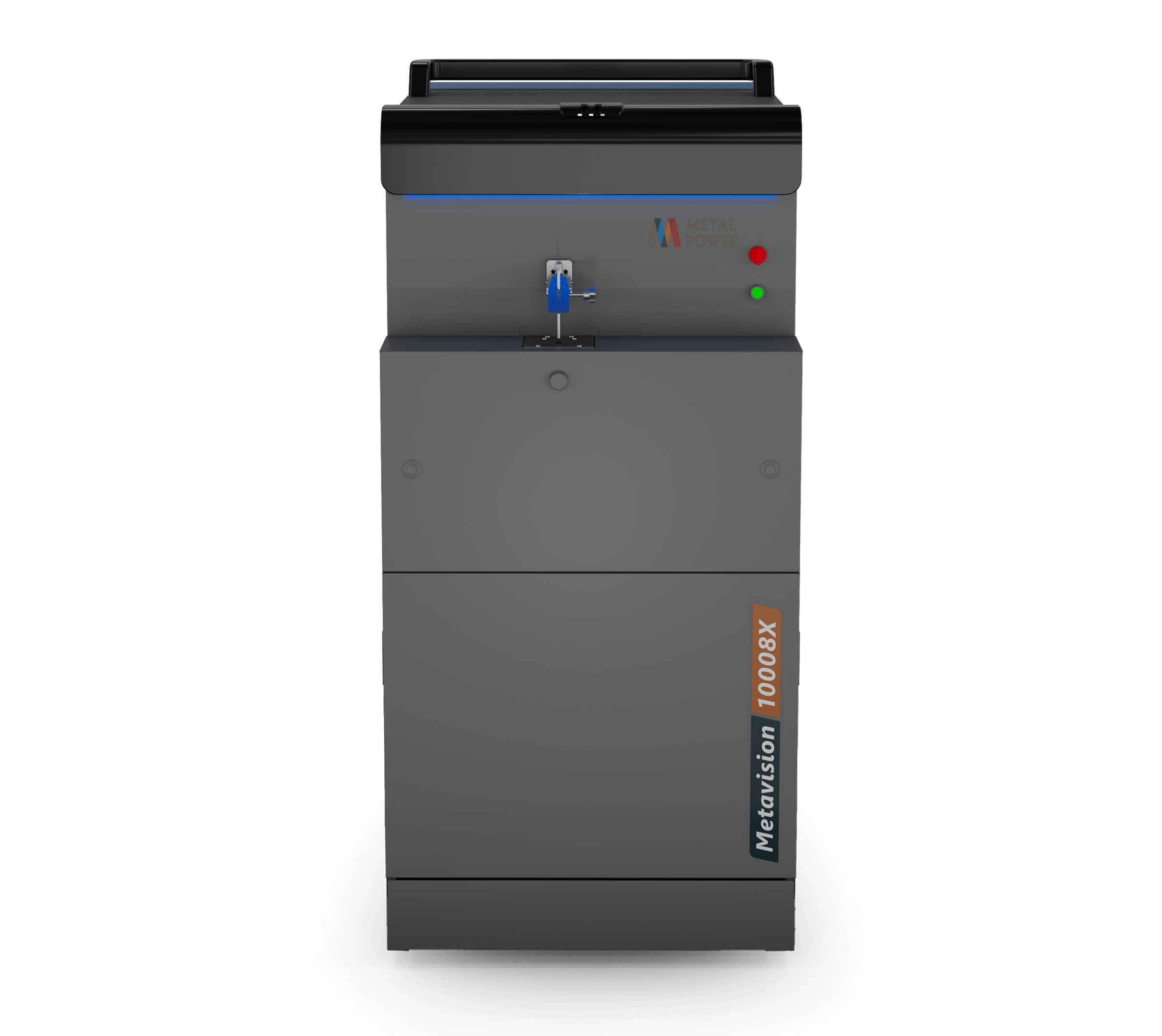

Space Grey

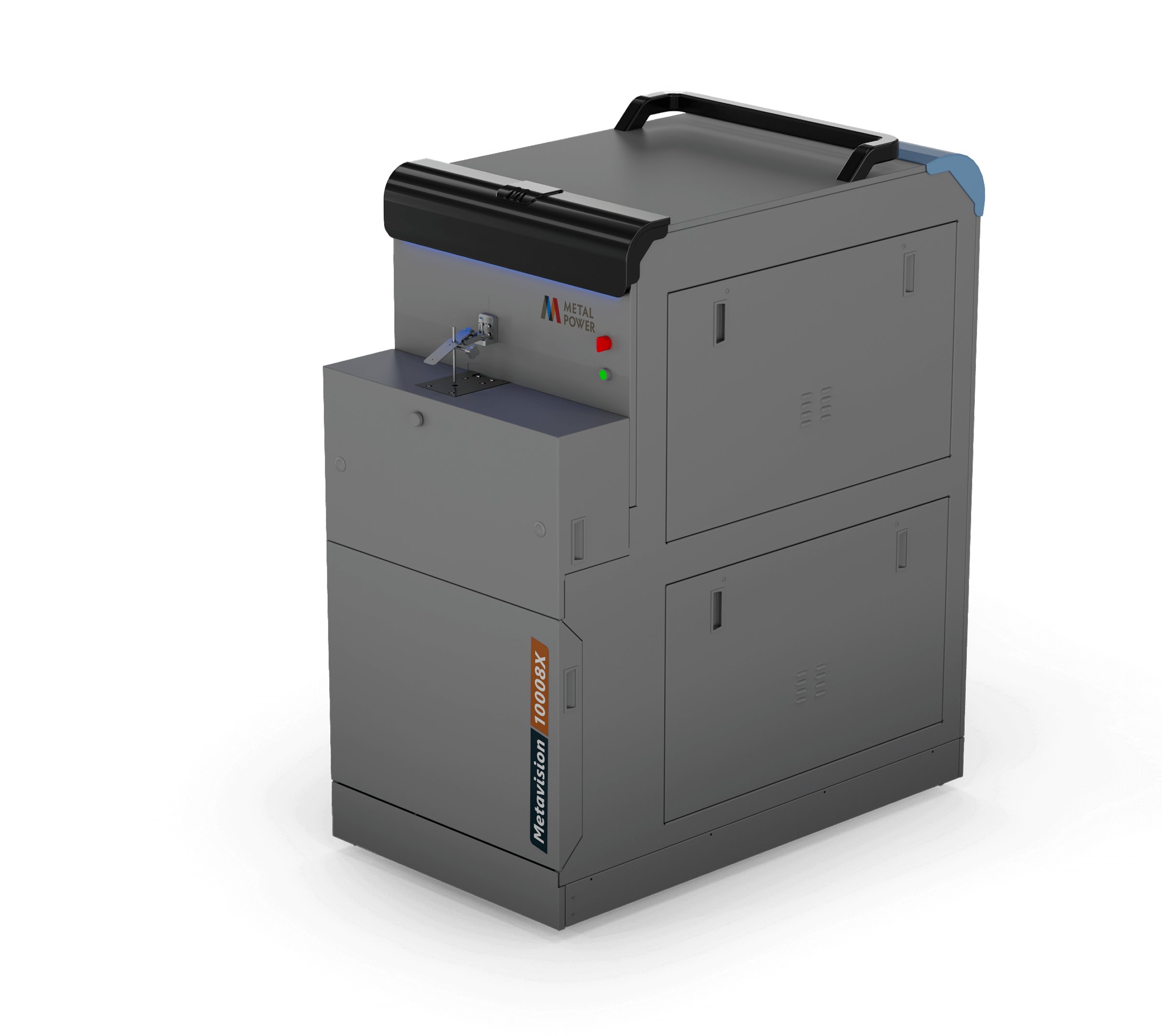

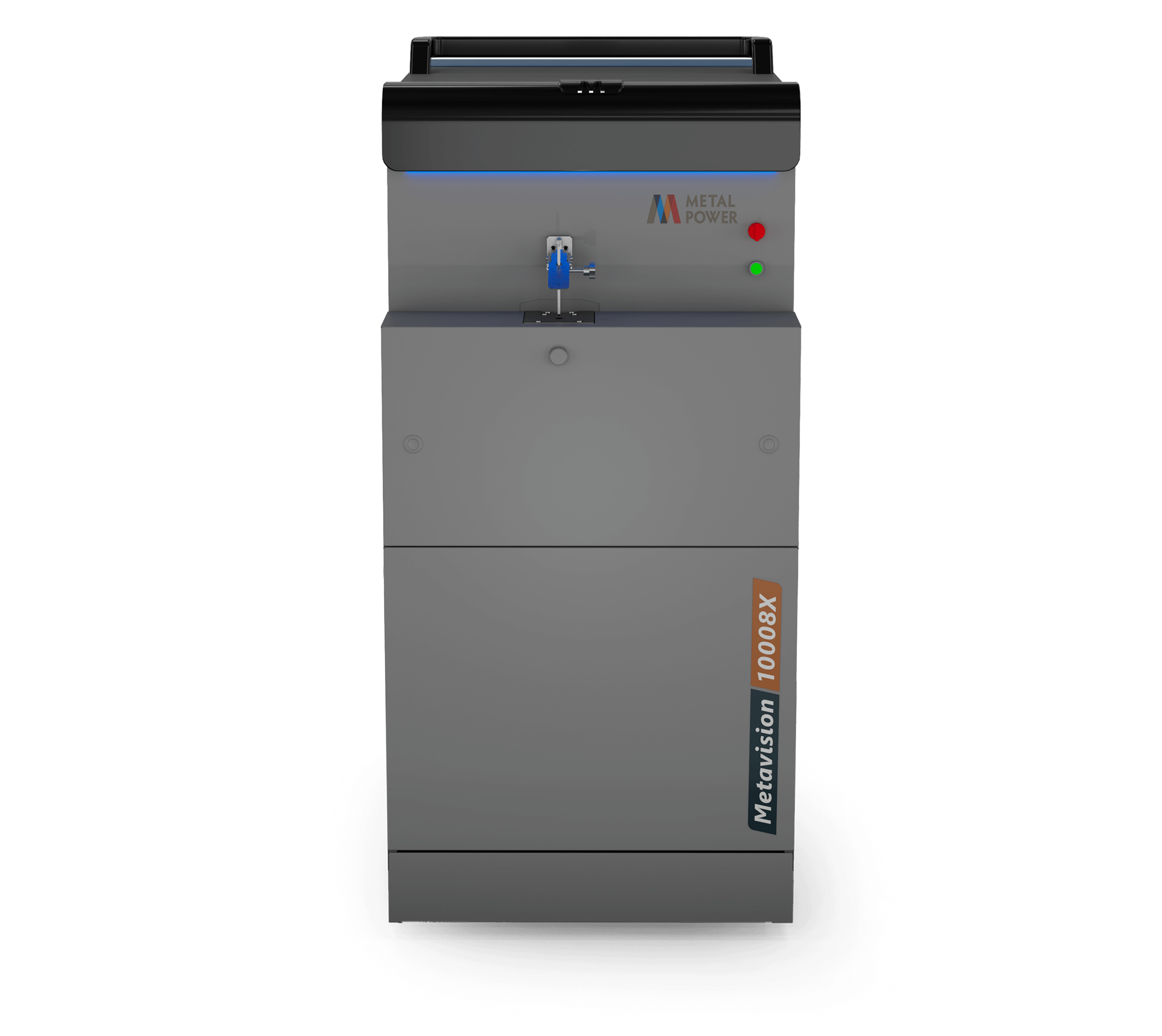

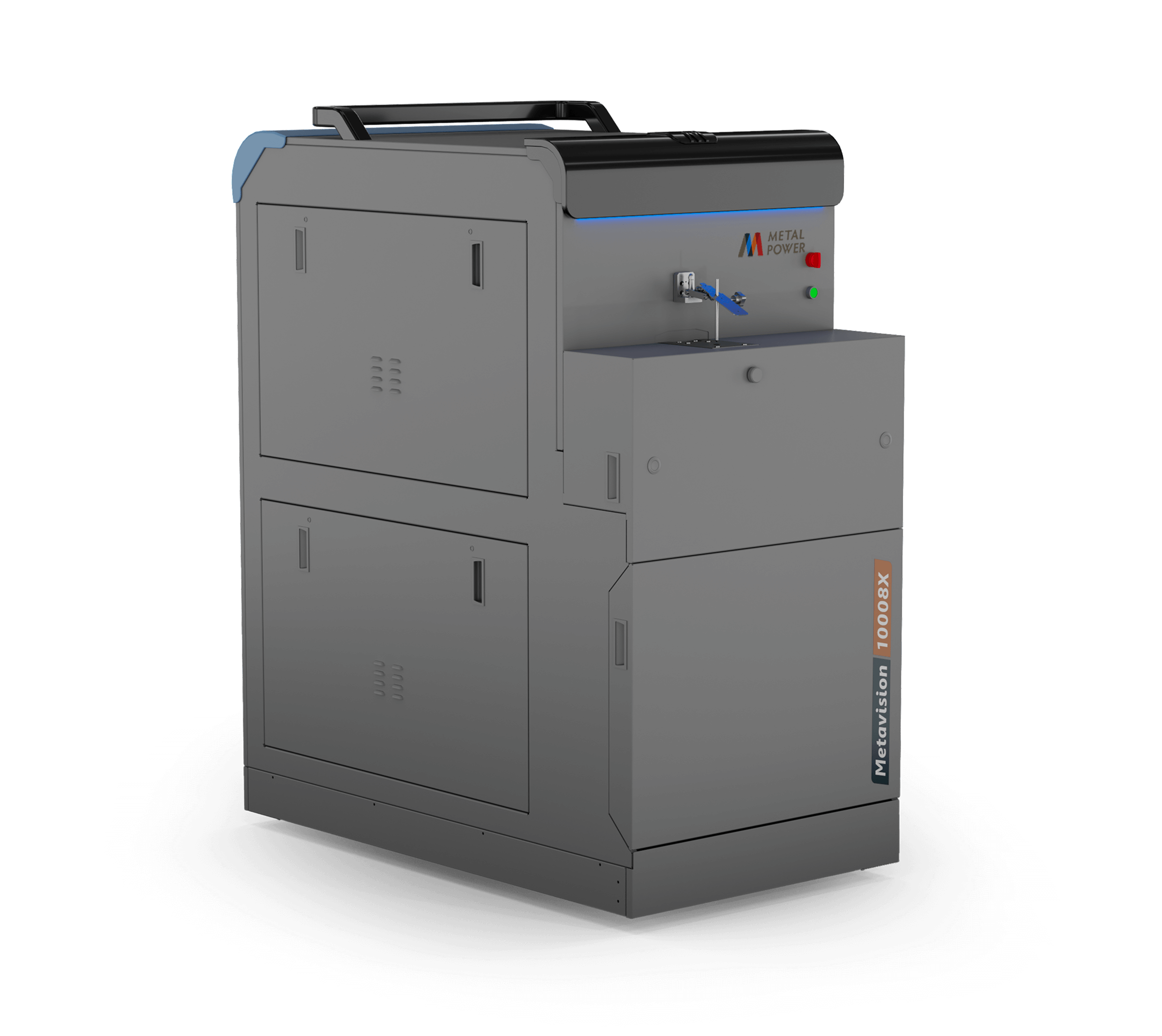

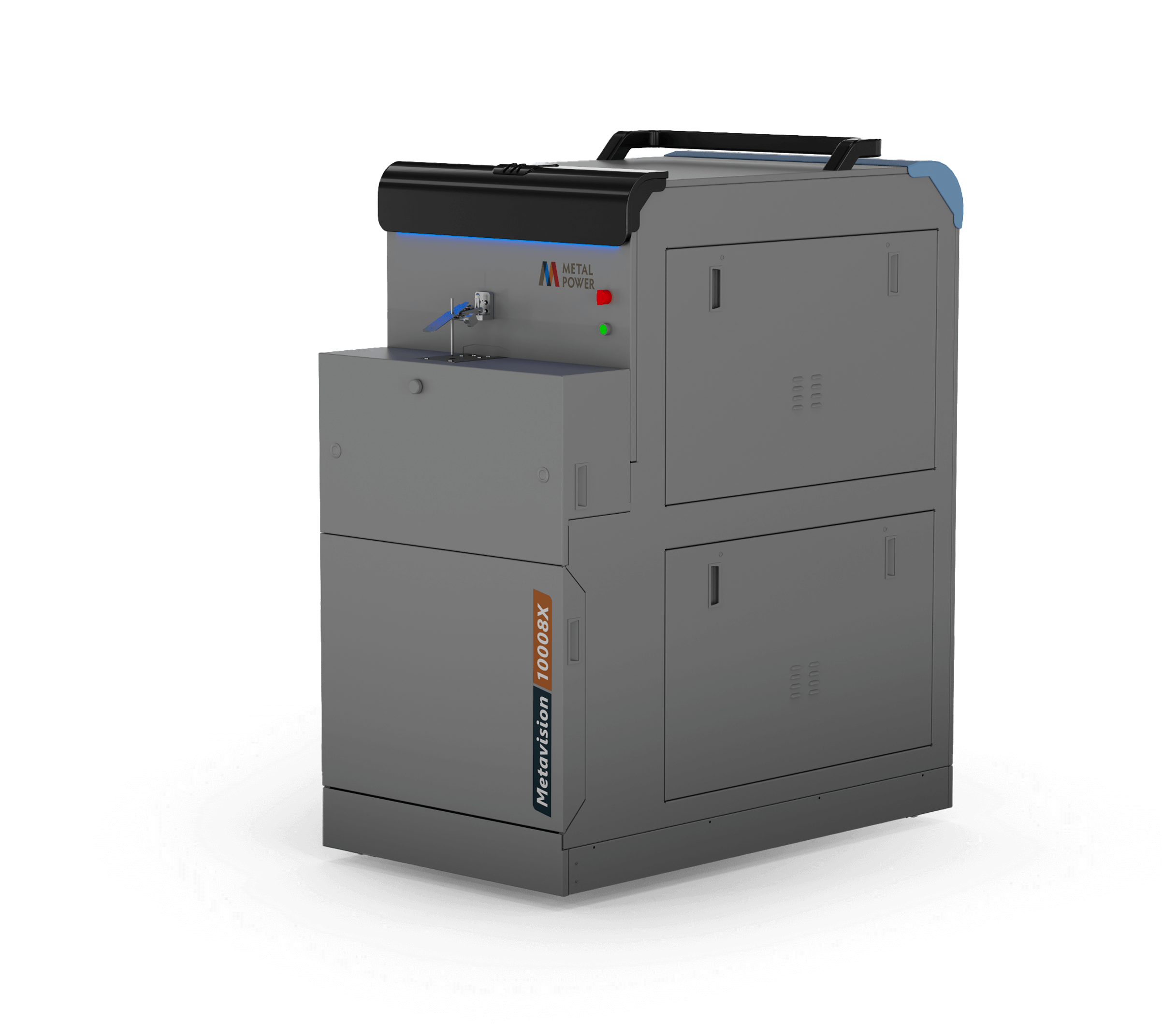

Classic Grey
Cool Grey

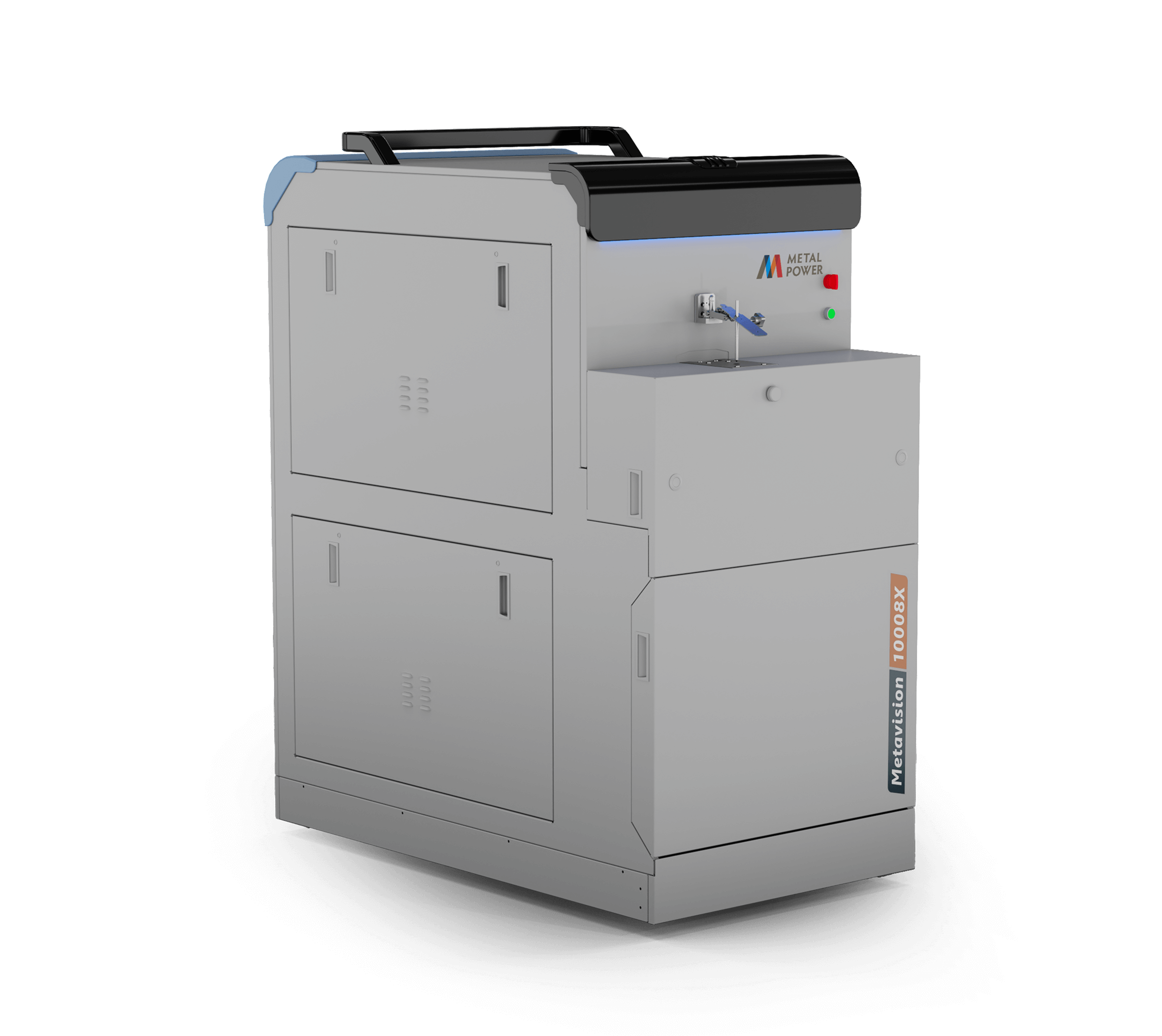

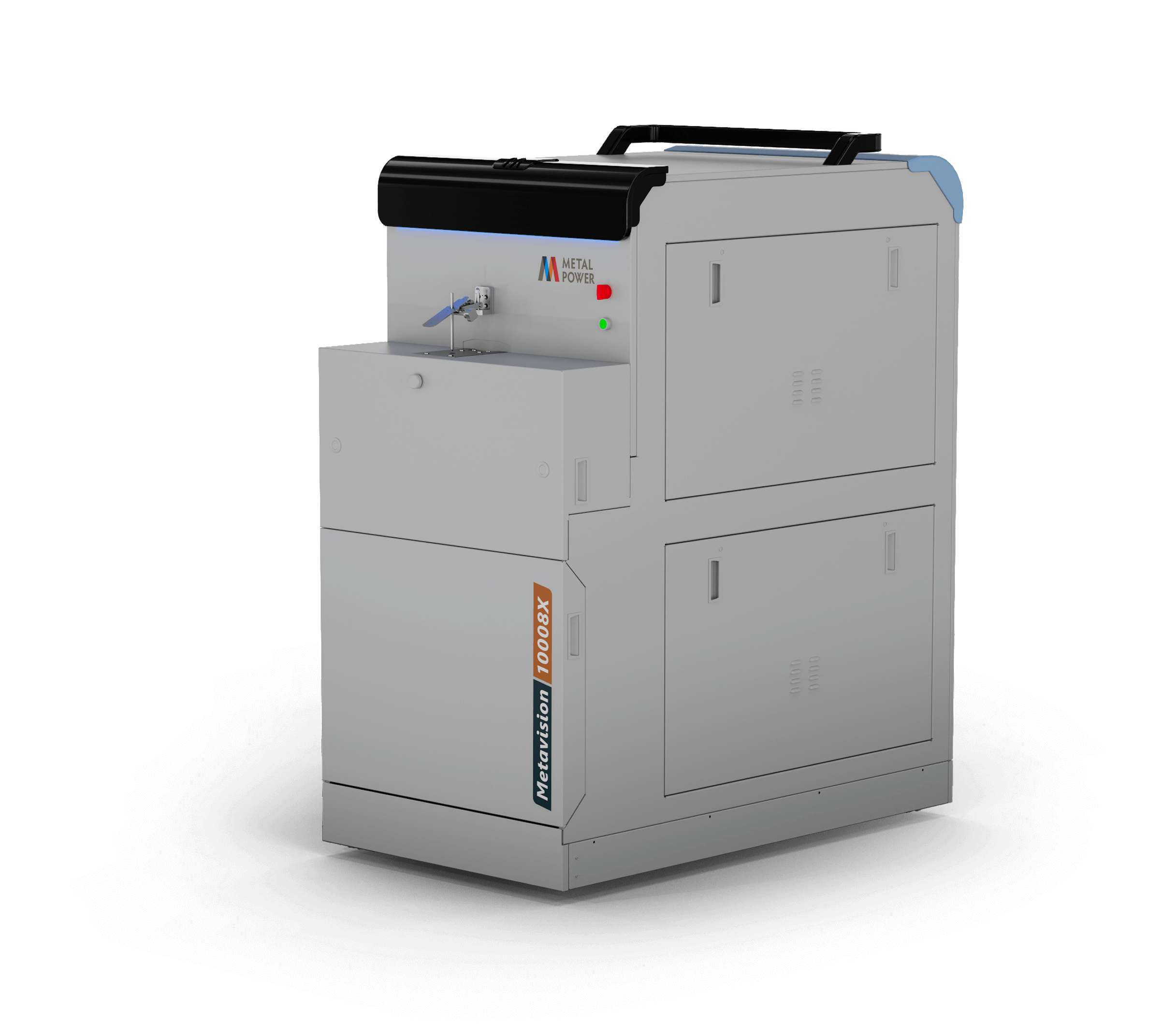

Warm Grey
Highlights of Metavision-10008X
Analyse 60+ elements across ferrous and non-ferrous bases
Dual optics with 750 mm focal length
Reciprocal linear dispersion (RLD) of 0.32 nm/mm
118-800 nm wavelength span coverage
Single-sample re-standardisation/re-calibration
Sealed optics with multi-stage Argon repurification
Unmatched analysis of C, O, N and H
Features of Metavision-10008X
Special Applications of Metavision-10008X
The Metavision-10008X enables users to resolve the widest range of applications across various industries, ensuring high accuracy, reliability, and repeatability.
Master alloy analysis
Ultra-high concentration of key alloying elements
Ultra-fine wires
0.1 mm to 3 mm diameter
Thin foils
0.1 mm to 1 mm thickness
Wire rods
3 mm to 13 mm diameter
Mini samples
4 mm to 13 mm sample fit diameter
Ecosystem
A comprehensive ecosystem for your Optical Emission Spectrometer.
Charge Correction
Enhance your melt recipe in real-time with melt process optimisation tool.
Sample Preparation Machine
Sample preparation machine for grinding, polishing, turning, and electrode pointing in ferrous and non-ferrous applications.
CleanSharp
Brushless electrode cleaner-sharpener to make the electrode tip cleaning and pointing easy, safe, and swift.
ArmourSafe
Protect your OES against unstable power and temperature for optimal performance.
Tech Specifications of Metavision-10008X
General
Technology
Arc/Spark Optical Emission
Form Factor Options
Floor-standing
Optics
Configuration
Dual vacuum-free optics
Design
Rowland Circle with Paschen-Runge mountings
Detector Type
CMOS/CCD
Detector Arrangement
Multi-Detector Array
Wavelength Coverage
118-800 nm
Focal Length
750 mm
Grating (grooves/mm)
3,600 & 2,400
Reciprocal Linear Dispersion
0.32 nm/mm
Construction
Hermetically sealed
Peltier Cooled Optics
Yes
Internal Argon Purification
Multi-stage purification
Automated Profiling
Yes
Thermal Stabilization
Yes
Excitation Source
Type
Fully Digital PWM
Control Metric
Current-controlled
Max. Discharge Frequency (Hz)
1,000
Input Voltage range
90-270 VAC
Frequency
50/60 Hz
Spark Chamber
Type
Open stand
Electrode Flow type
Jet flow
Automatic Sample Detection
Available
Electrode
Tungsten
Quick Release Spark Plate
Yes
Electronics
Readout System
16-bit ADC
Computer Interface
Ethernet
Applications
Available Factory Calibrations
Ferrous, Aluminium, Copper, Nickel, Lead, Tin, Zinc, Titanium, Magnesium, Cobalt, Zirconium and Silver
Alloy Programs
Individual alloy programs for all of the above
Analysis Features
Elemental Coverage
60+
Time Resolved Spectroscopy (TRS)
Yes
Purity Analysis
99.998%+
Hydrogen (H) in Ti
Yes
Oxygen (O) in Fe, Cu, Ti & Ni
Yes
Nitrogen (N) in Steels
Yes
Soluble-Insoluble in Steels (Al, Ti, B, Ca)
Yes
Sodium (Na) & Lithium (Li) in Aluminium
Yes
RoHS Elements (Pb, Hg, Cd)
Yes
Standardisation/Re-calibration
Smart STD (Single-sample Technique)
Special Applications
Ultra-Fine Wire Analysis
Yes
Thin Foil Analysis
Yes
Thin Sheet Analysis
Yes
Side-On Wire Analysis
Yes
Wire Rod Analysis
Yes
Small-Sized Sample Analysis
Yes
Physical Dimensions and Weights
Size (Benchtop)
N/A
Weight (Benchtop)
N/A
Size (Floor-Standing)
1261mm (L) x 724mm (W) x 1507mm (H)
Weight (Floor-Standing)
~280 Kgs
Environmental Conditions
Operating Temperature
18 - 35˚C
Storage Temperature
-10 - 50˚C
Relative Humidity
20 - 80% (Non-condensing)
Accessories and Add-Ons
Sample Preparation Machines
Yes
Armour Safe (Safety Module)
Yes
WirelessRTDS (One-to-One Display Transmitter)
Yes
WirelessRTDS (One-to-Many Display Transmitter)
Yes
Mobile Application
Yes
MetaLib Pro - Grades Library
Yes
CleanSharp
Yes
Argon Regulator (Dual-stage)
Yes
Unit Pedestal
N/A
PC Pedestal
Yes
Certifications and Compliance
Regulatory Certifications
CE Certified
Test Method References
ASTM, DIN
Colour Options
Model Colour Options

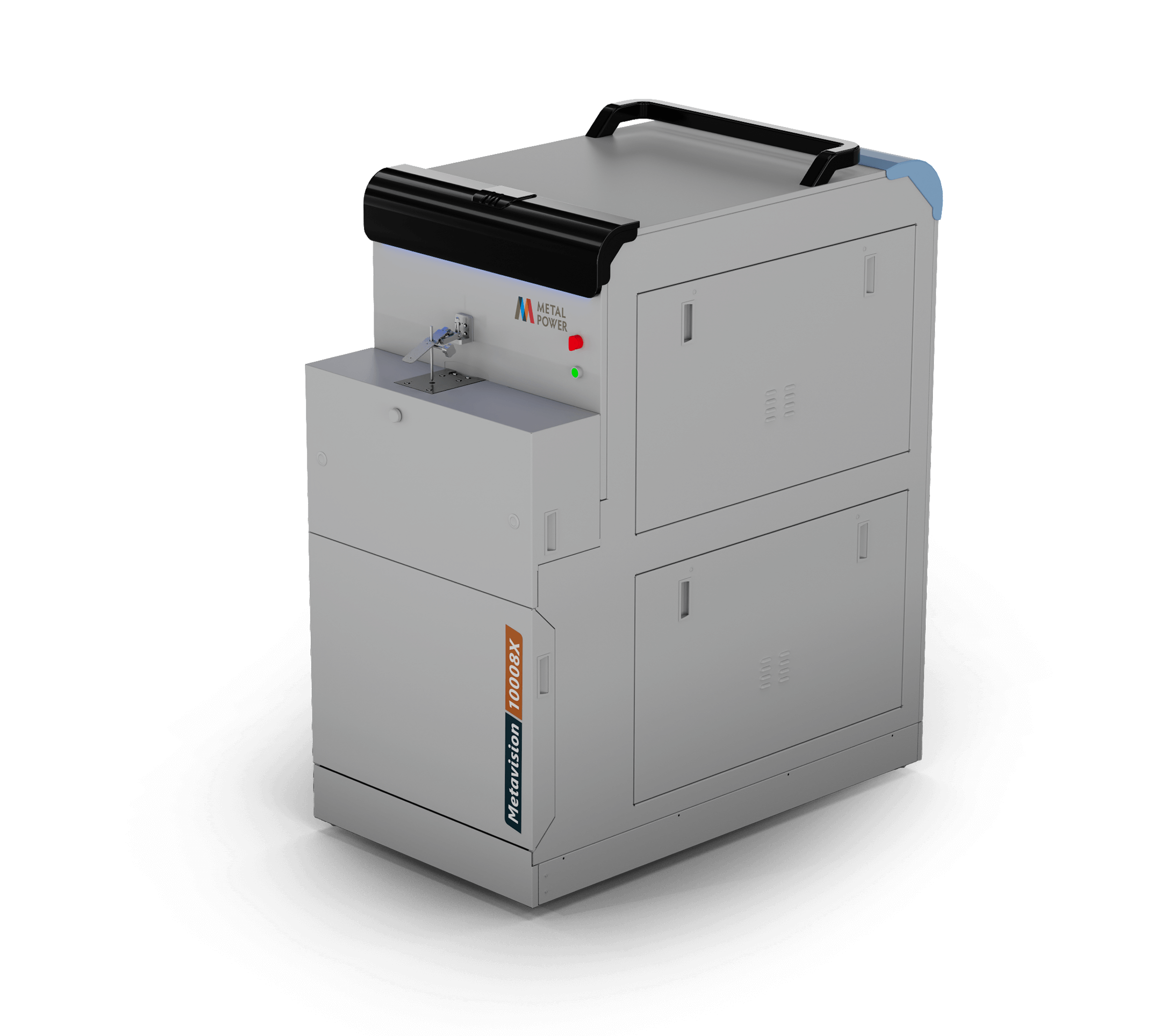

Warm Grey
Cool Grey
Classic Grey

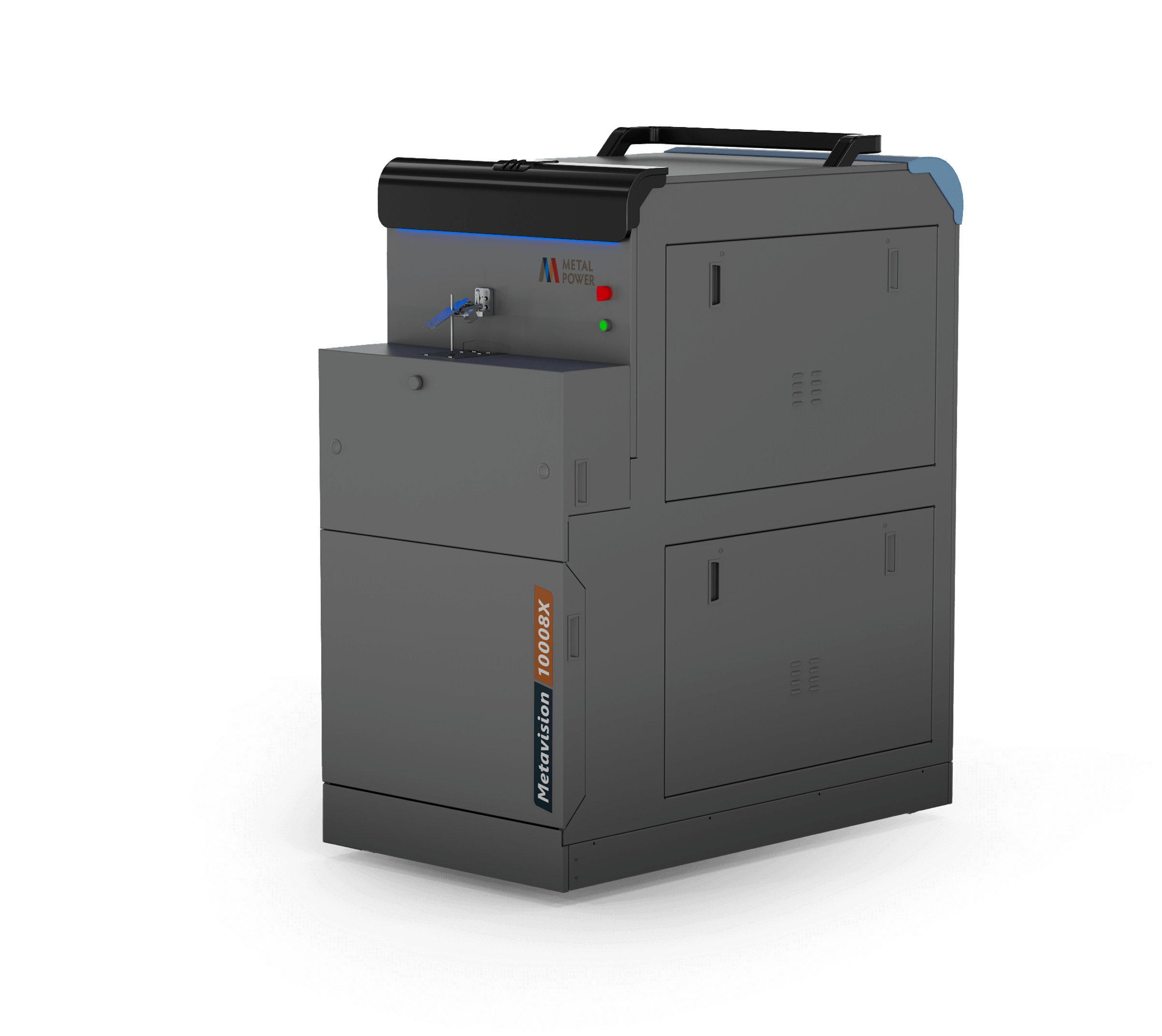

Space Grey
Matte Black
Cool Grey
Classic Grey
Space Grey
Matte Black
More Details
Reach out to us at marketing@metalpower.net to learn more about the Metavision-10008X's unmatched performance for over 60 elements across pure metals and alloys, with detection limits down to single- and sub-ppm levels analysis of gaseous elements like Oxygen, Nitrogen, and Hydrogen, along with the soluble and insoluble elements in Steels.
