Wheel your lab to the sample
A high-performance mobile OES delivering precise analysis, grade identification, exceptional flexibility, and rugged, field-ready design for effortless on-site use.
Get in touch Get in touch Compare Compare
Download brochure Download brochure Get Support Get Support

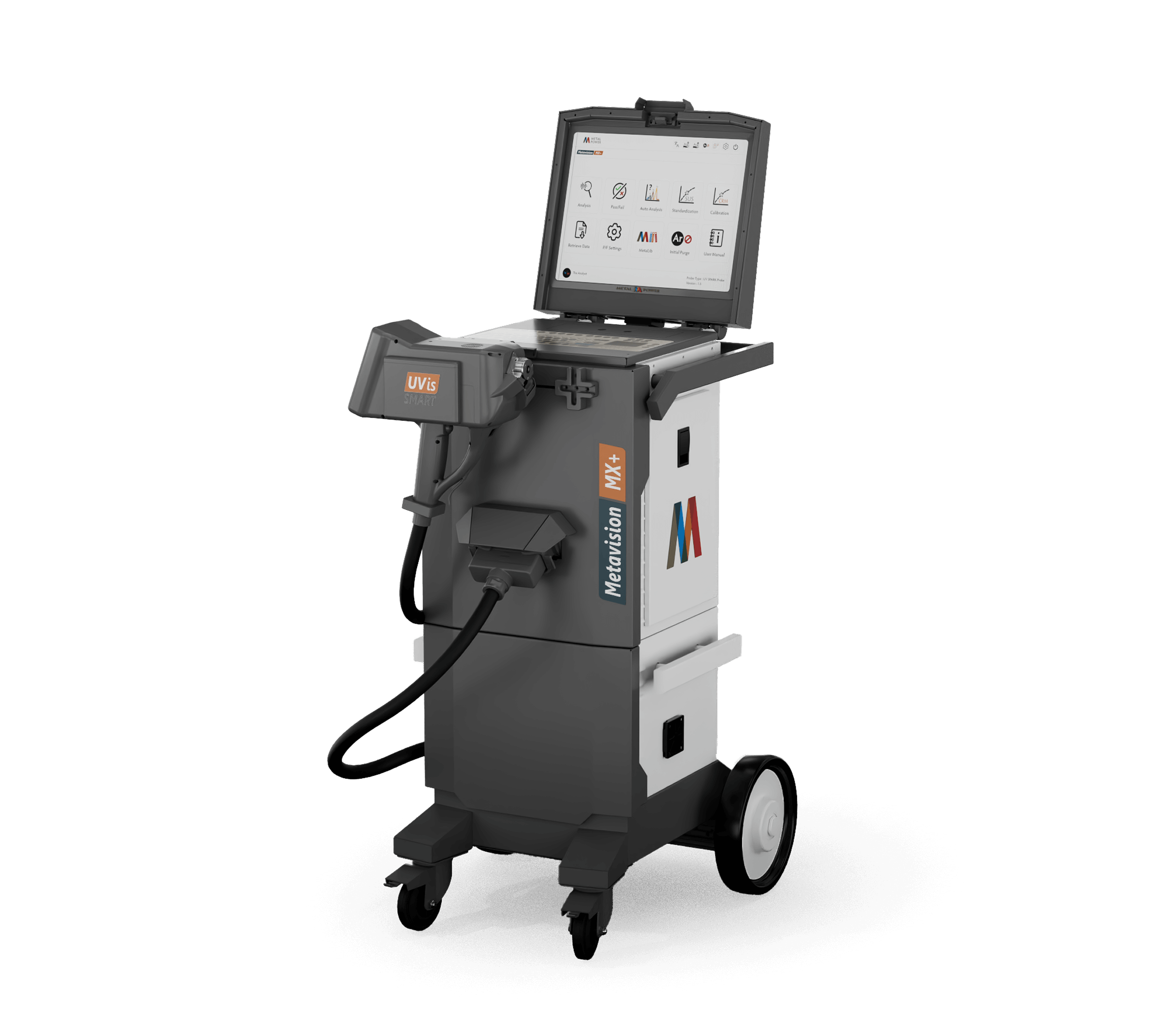

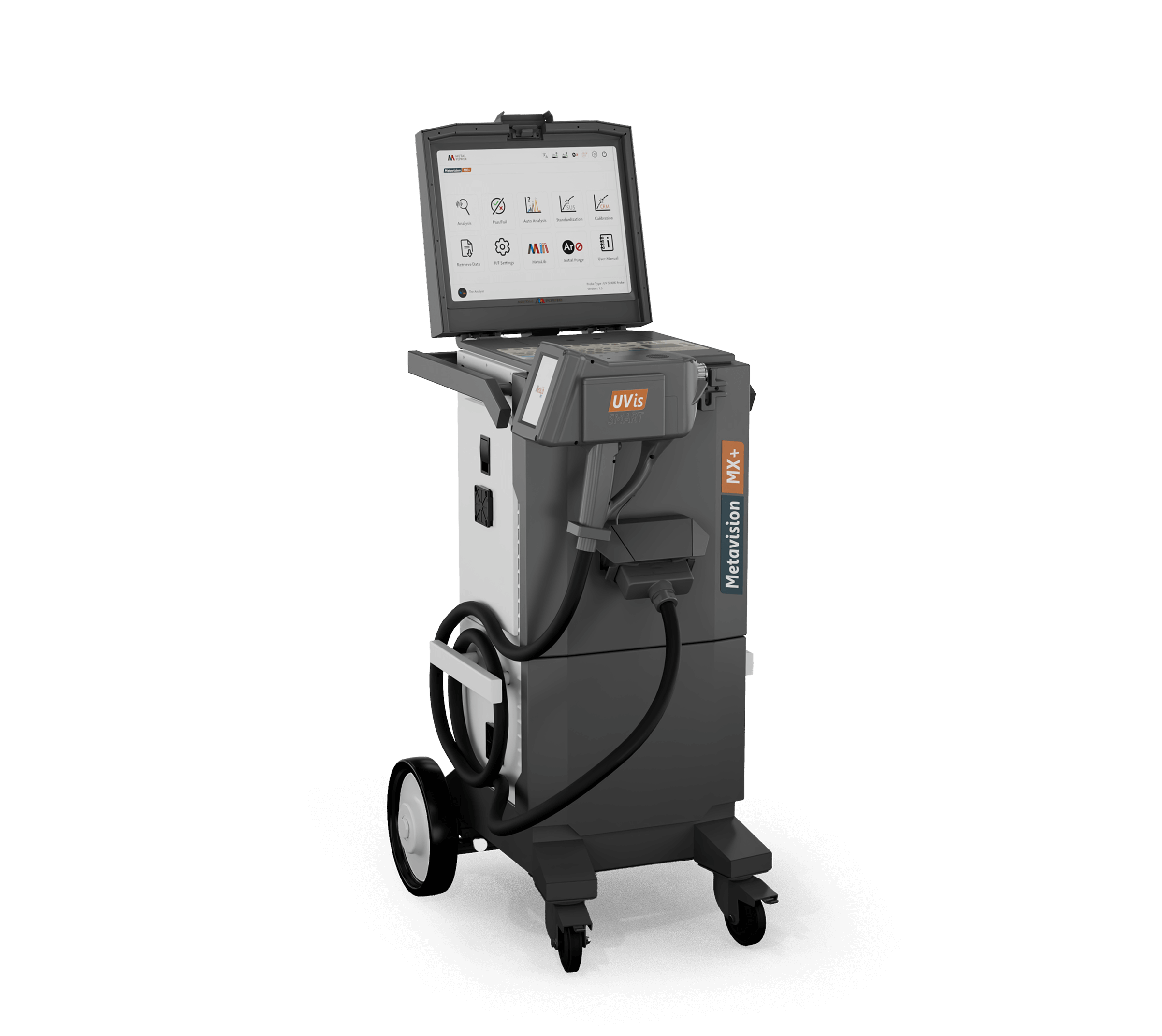

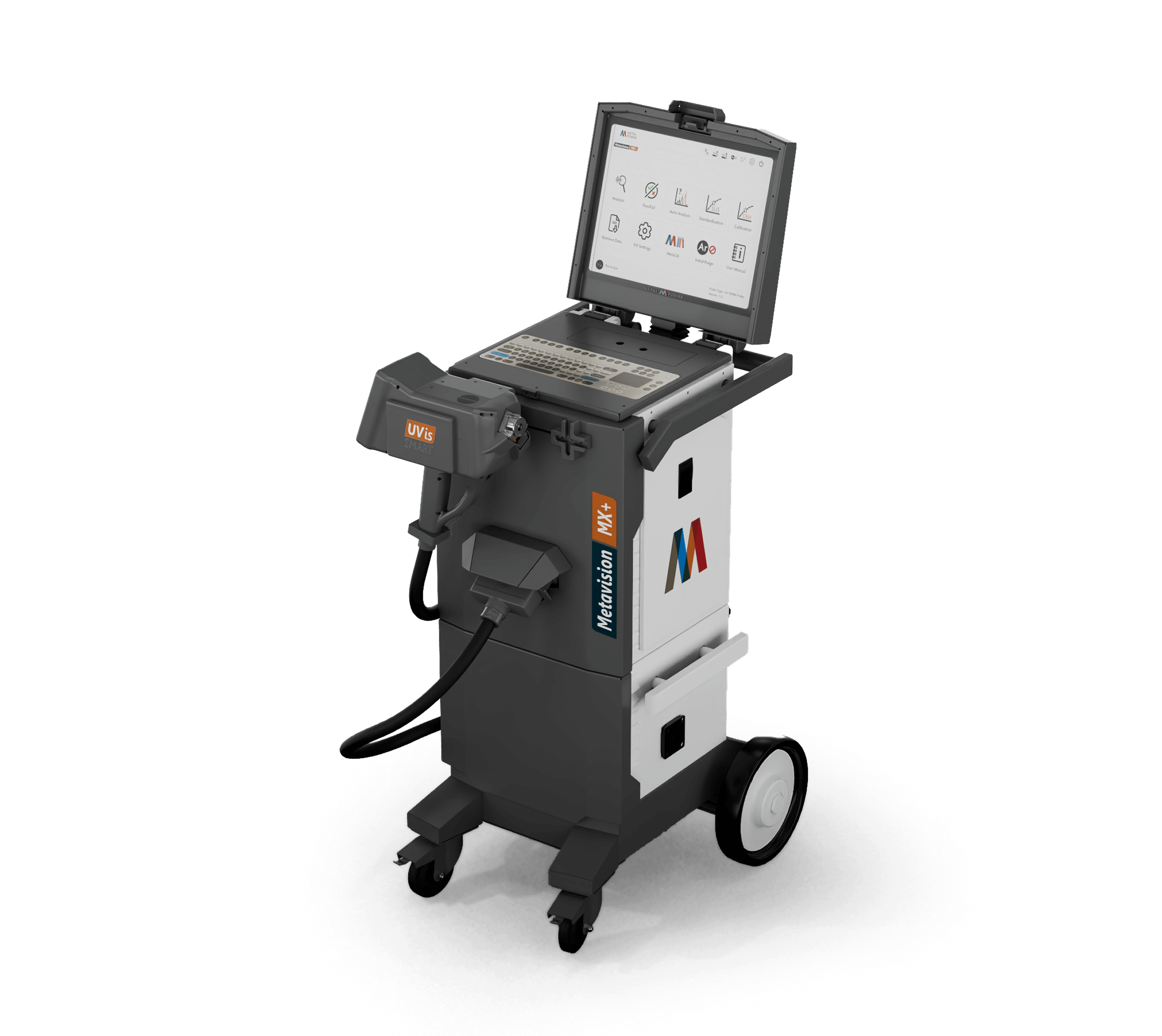

Metavision MX+ Space Grey
Metavision MX+ Space Grey
Metavision MX+ Space Grey
Metavision MX+ Space Grey
Highlights
Highlights
Self-contained trolley; integrated computer, keyboard, and touchpad
Self-contained trolley; integrated computer, keyboard, and touchpad

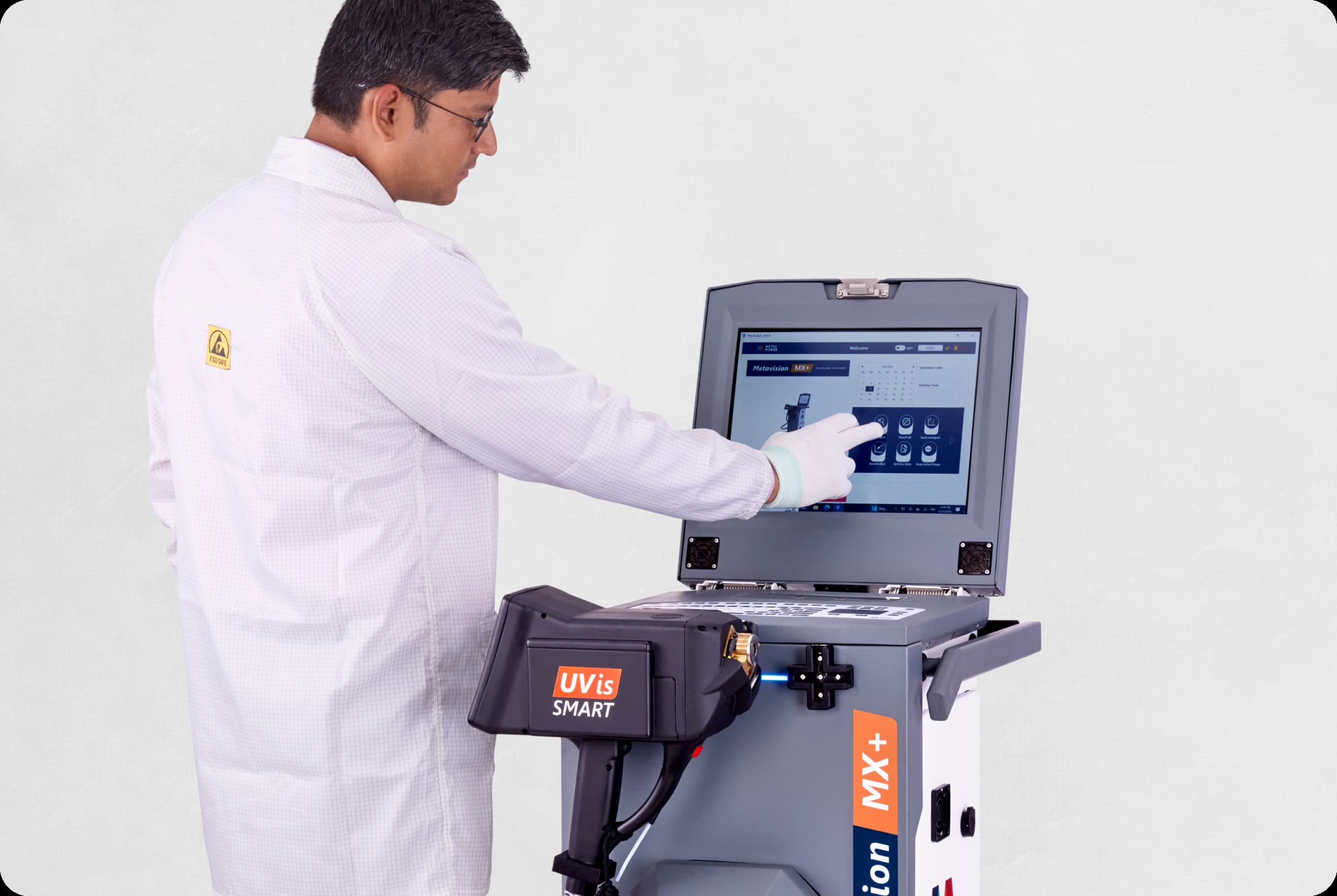

Integrated large 15” capacitive touchscreen for user ease
Integrated large 15” capacitive touchscreen for user ease
Up to 8 hours of battery capacity
Up to 8 hours of battery backup capacity for extended use
Pre-loaded library with 350,000+ grades
Pre-loaded with 350,000+ metal grades from 74+ countries
Features a rugged build designed
Features a rugged build designed especially for the shop floor conditions
Touch-optimised, user-friendly, icon-driven operating software suite
Touch-optimised, user-friendly, icon-driven operating software suite
Fast charging capability with 80% charge in less than 10 minutes
Option to create user-defined libraries for metal grades and/or CRMs
Features
Easy On-site Analysis
Built for applications like yard testing, final product testing, railways, aviation, scrap testing, recycling, joint analysis, failure testing, etc., the Metavision-MX+ combines state-of-the-art technology with user-centric design.
Effortless Mobility
Compact and modular with a 4-metre conduit (extendable up to 10 metres), the Metavision-MX+ is designed to fit into a standard car boot, making transportation and on-site analysis more convenient.
Multiple Probe Options

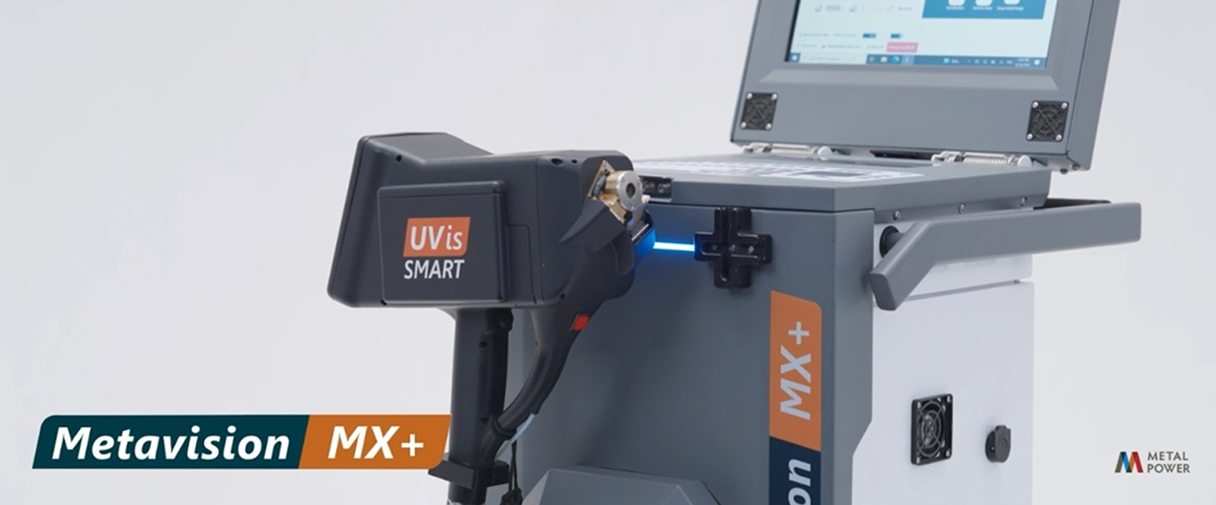

The Metavision-MX+ offers users a variety of probe options, including the touchscreen-equipped UVis Smart probe, which can analyse UV and visible elements in a single spark, thereby significantly boosting productivity and convenience.
UV Analysis
Specialised for Deep UV elements like Carbon, Sulphur, Phosphorus, Boron and Nitrogen with detection down to ≤20 ppm for each.
Analyse Sodium and Lithium
The multi-CMOS optics system of Metavision-MX+ covers the full analytical range up to 671 nm, covering 55+ elements, including Na & Li analysis.
Comprehensive Grade Identification
The pre-loaded grade library includes over 350,000 standards from 75+ countries, featuring global specifications and ensuring unmatched reliability for PMI and grade sorting.
Real-Time Data Display
An integrated touchscreen on the probe allows instant result visualisation, eliminating the need to return to the base unit.
Special
Applications

The Metavision-MX and Metavision-MX+ enable users to resolve the broadest range of applications and use cases across various industries, ensuring high accuracy, reliability, and repeatability.

M1 8mm Adapter
M1 8mm Adapter
Base Plate with 8mm diameter spark hole
M2 Small Sample Adapter Kit
M2 Small Sample Adapter Kit
Base Plate with Ceramic discs from 3 mm to 8 mm diameter
M3 Tube Adapters
M3 Tube Adapters
Analysis of tubes with diameters ranging from 10 mm to 300 mm (Side-on analysis)
M4 Adapter (Front-end)
M4 Adapter (Front-end)
Analysis of Wire rods from 1 mm to 5 mm diameter
M5 Adapter (Front-end)
M5 Adapter (Front-end)
Analysis of Wire rods from 5 mm to 13 mm diameter
M6 Adapter (Side-on)
M6 Adapter (Side-on)
Analysis of wire rod samples from 1 mm to 10 mm diameter
Ecosystem

A comprehensive ecosystem for your Optical Emission Spectrometer.

MetaLib Pro
The World's largest library for instant metal-grade identification.
Learn more
MPALabTab
Mobile application to access your OES data from anywhere, anytime.
Learn more
LIMS
Advanced data integration and analysis tool.
Learn more
WirelessRTDS
Wirelessly transmit your readings from the lab to the melting platform.
Learn more
Charge Correction Platform
Enhance your melt recipe in real-time with melt process optimisation tool.
Learn more
Tech Specs
General
Technology
Arc/Spark Optical Emission
Type
Mobile
Form Factor Options
Mobile/Benchtop
Available Factory Calibrations
Ferrous, Aluminium, Copper, Zinc, Nickel, Titanium, Tin, Lead & Cobalt
Alloy Programs
Individual alloy programs for all of the above
Optics
Detector Type
Multi-CMOS
Wavelength Coverage
170-620 nm
Probes
UVis Smart Probe (Inluding C, S, P, N)
Yes
Spark Probe
Yes
Arc Probe
Yes
Time to Swap Probes
<10 seconds
Battery
Battery Life
8 Hours
Number of Burns per Charge
~800
Fast Charging
Yes, 80% charge in less than 10 minutes
Grades' Library
3,50,000+ In-built grades from 74+ Countries
Analysis Features
Elemental Coverage
55+
Nitrogen (N) in Steels
Down to 20 ppm
Sodium (Na) & Lithium (Li) in Aluminium
Yes
RoHS Elements (Pb, Hg, Cd)
Yes
Standardisation Technology
Smart STD (Single-sample Technique)
Physical Dimensions and Weight
Size (Benchtop)
472 mm (L) x 640 mm (W) x 905 mm (H)
Weight (Benchtop)
~31 Kgs
Size (Including all modules)
585 mm (L) x 690 mm (B) x 1380 mm (H)
Weight (Including all modules)
~70 Kgs
Environmental Conditions
Operating Temperature
0 - 45˚C
Storage Temperature
-10 - 50˚C
Relative Humidity
20 - 80% (Non-condensing)
Shock Proof Safety
Yes
Dust Proof Design
Yes
Splash Proof Design
Yes
More Details
Reach out to us at marketing@metalpower.net to learn more about our Mobile-OES series, the Metavision-MX+ and Metavision-MX featuring an integrated UV and Visible probe that eliminates the need for probe switching, while its lightweight, modular design ensures effortless transportation and tool-free operations, enabling users to analyse metals anytime, anywhere.
