High-performance analysis on wheels

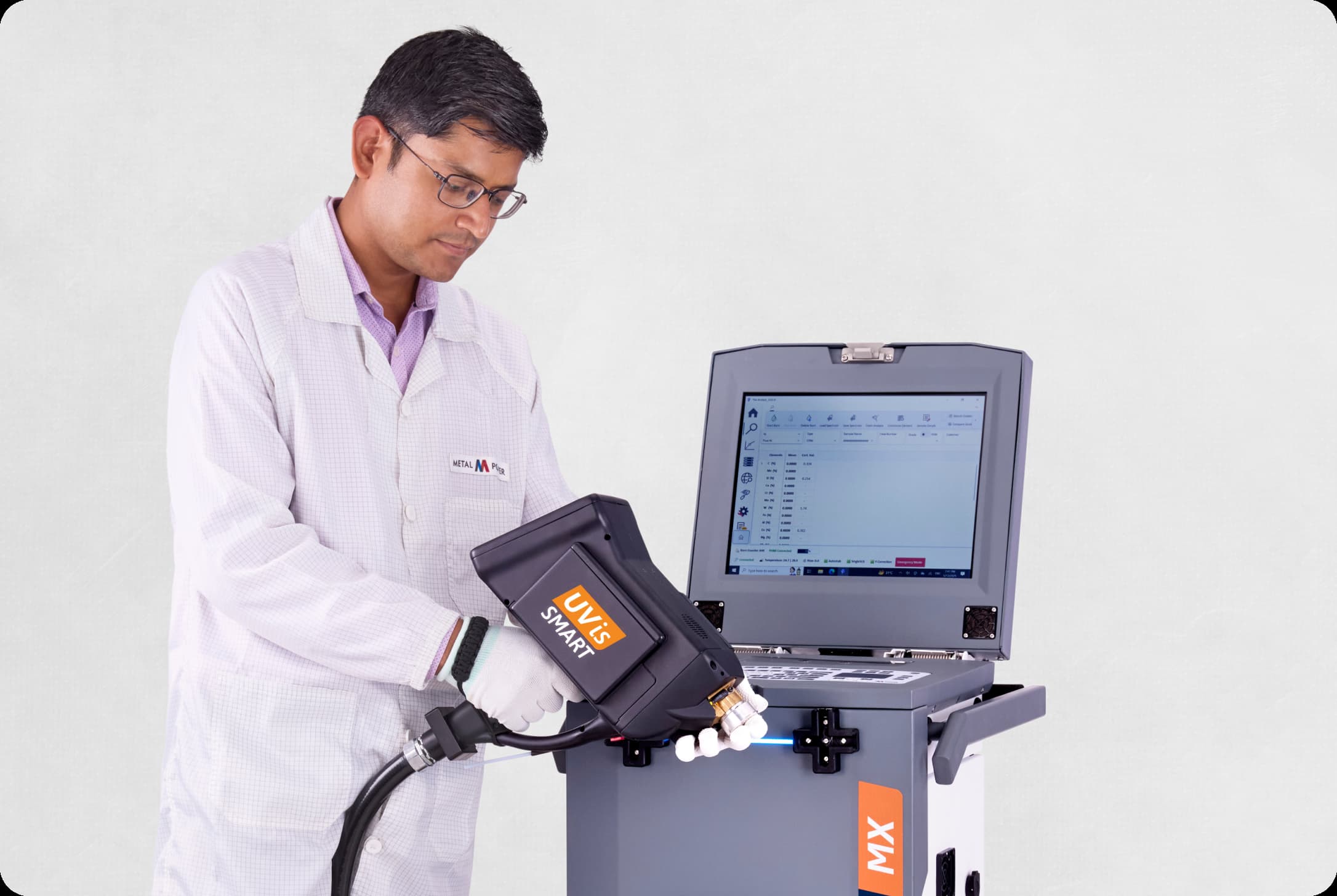

A compact, mobile analysis instrument offering full-featured analysis, Positive Material Identification (PMI), rugged mobility, and long battery life while being economical.
Get in touch Get in touch Compare Compare
Download brochure Download brochure Get Support Get Support

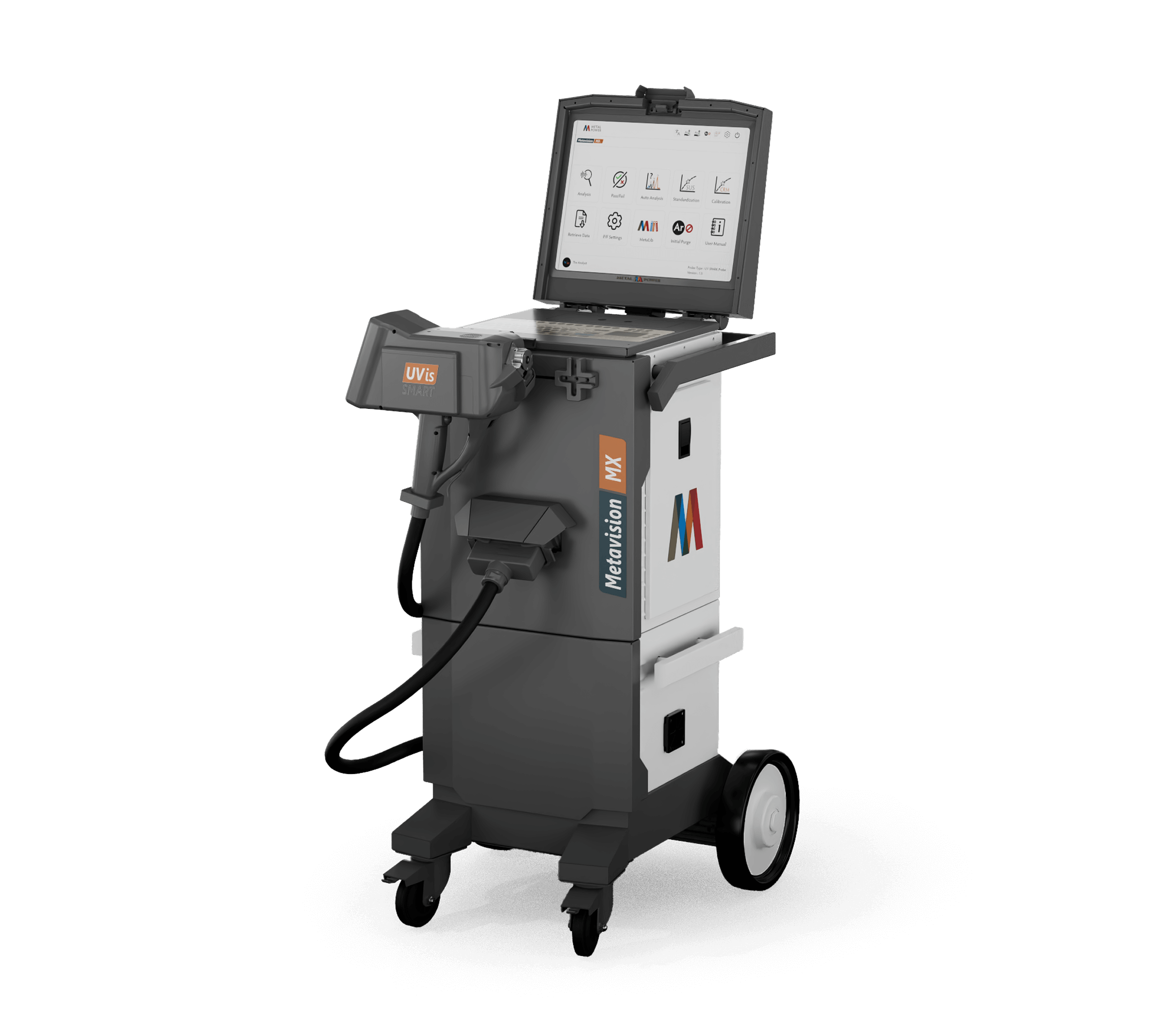

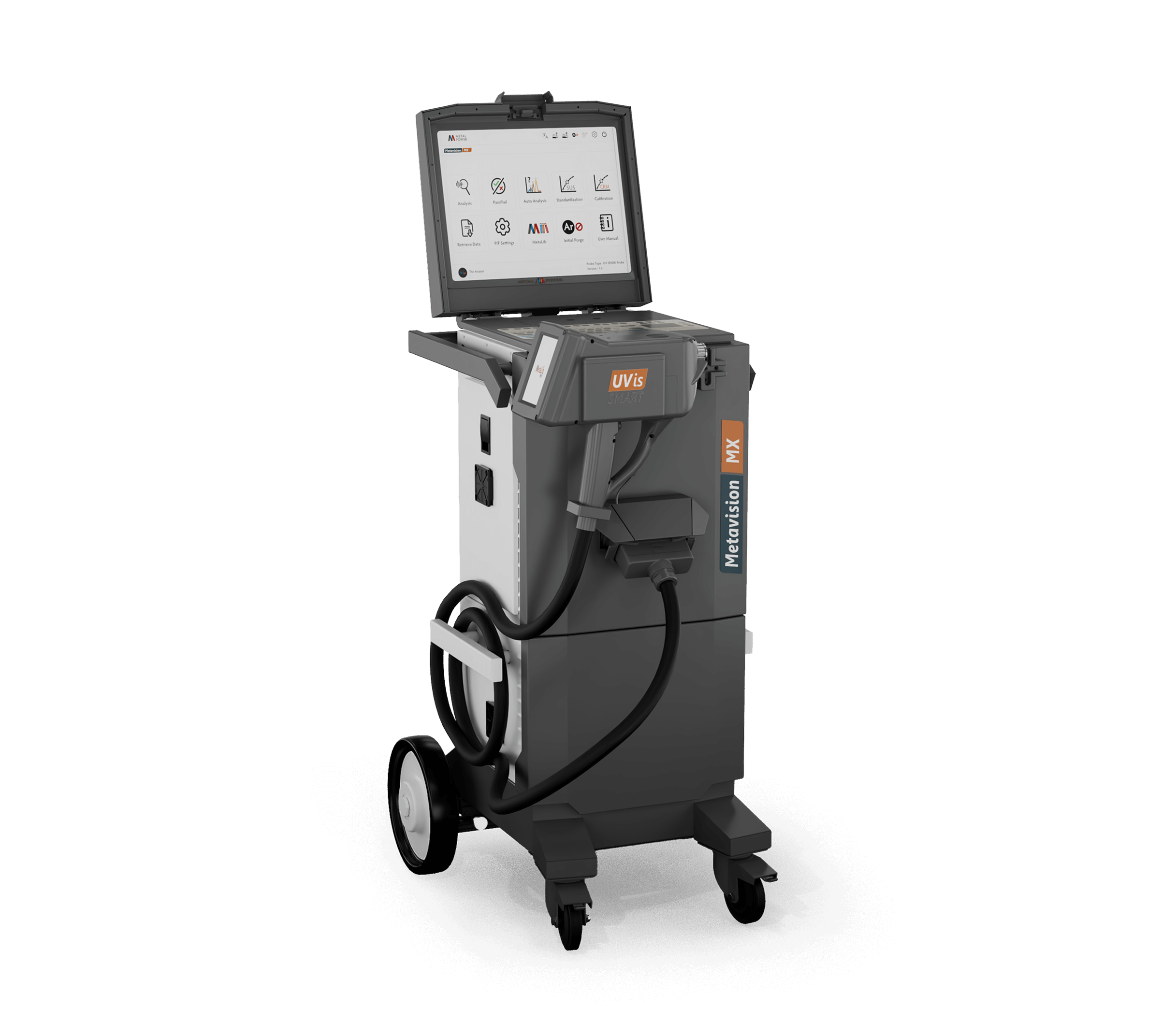

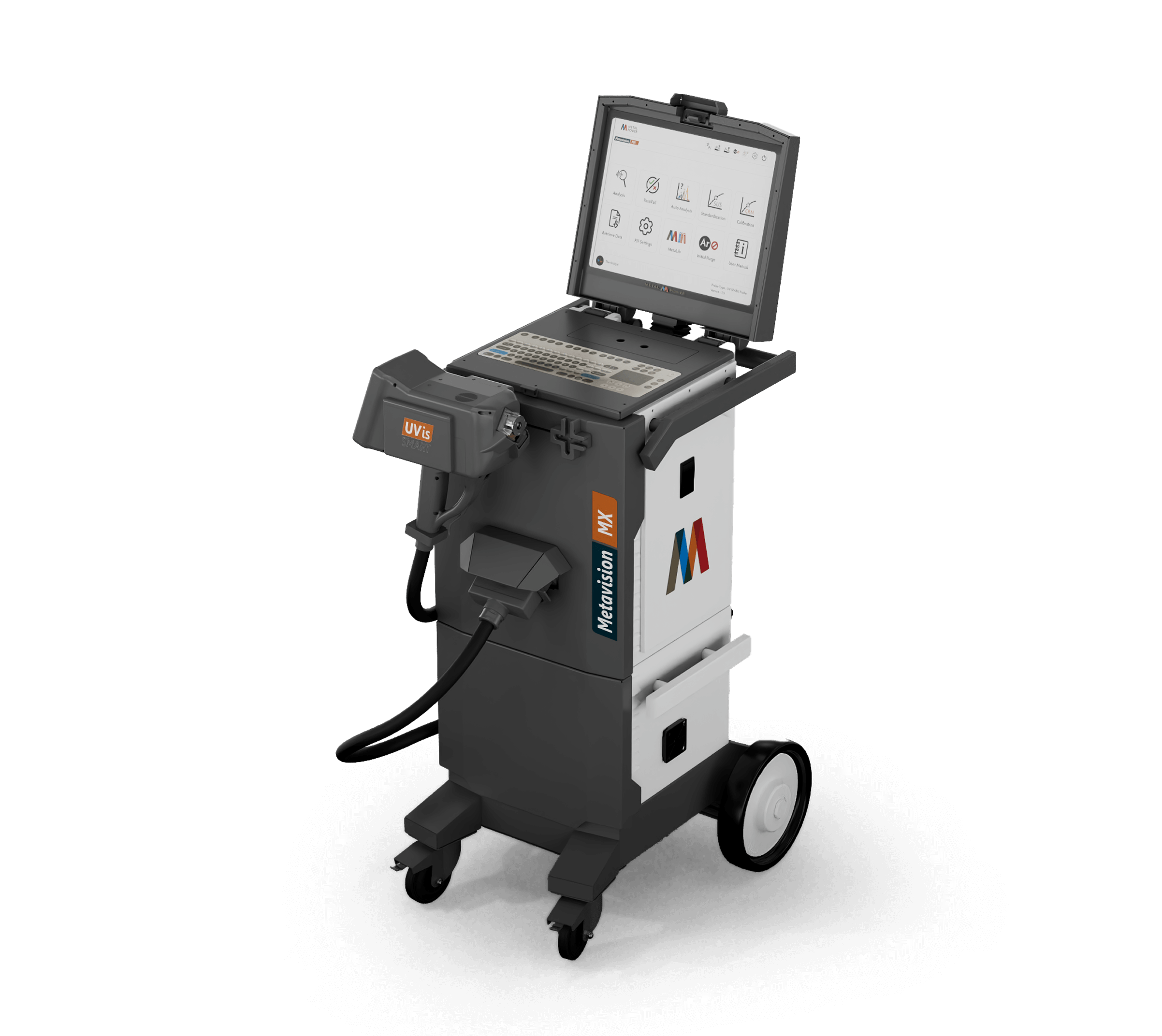

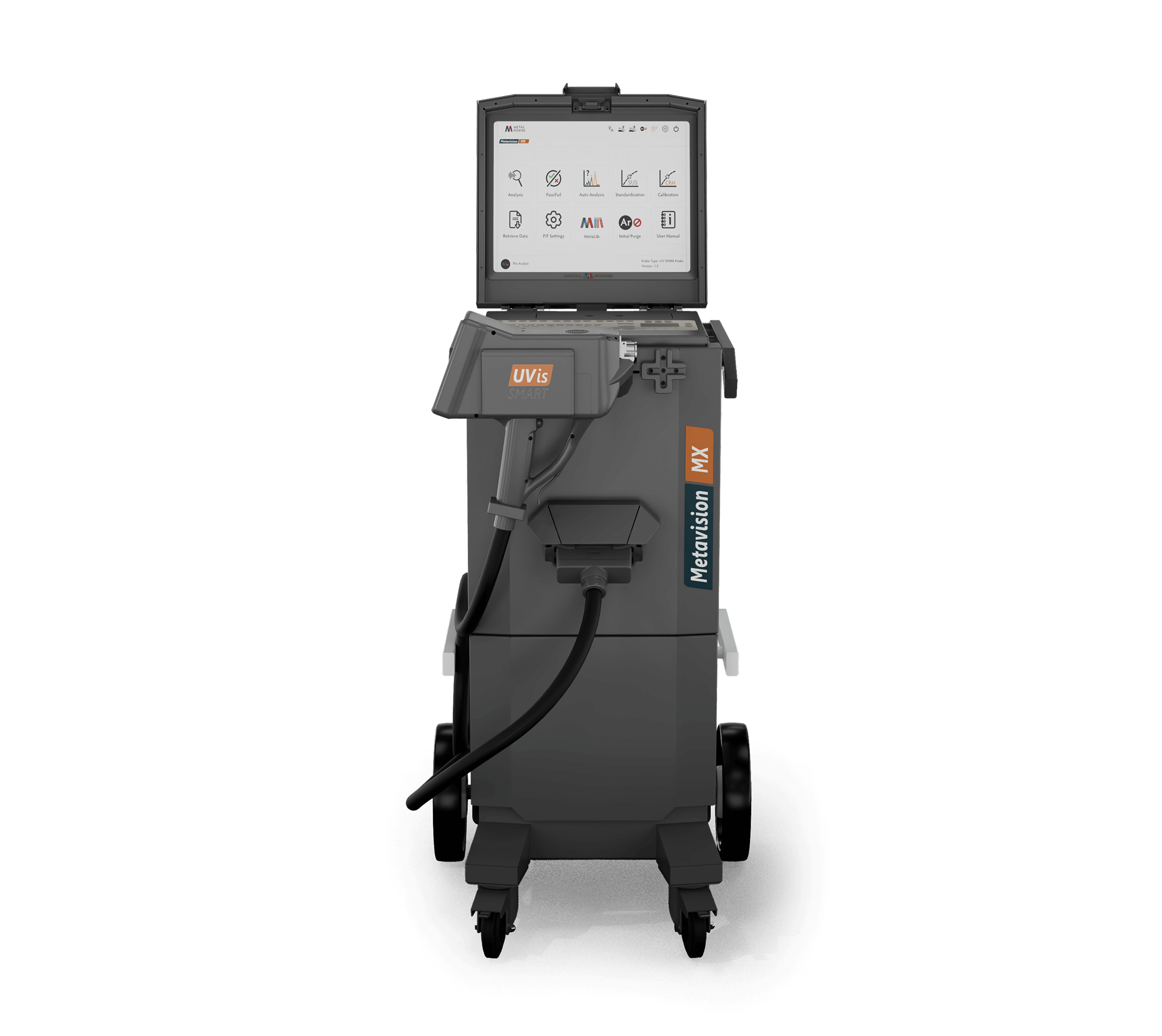

Metavision MX
Metavision MX
Metavision MX
Metavision MX
Highlights
Highlights
Self-contained trolley; integrated computer, keyboard, and touchpad
Self-contained trolley with integrated computer, keyboard, and touchpad
Integrated large 15” capacitive touchscreen for user ease
Large 15” capacitive touchscreen for enhanced on-site usability
Up to 8 hours of battery capacity
Up to 8 hours of battery backup capacity for extended use
Pre-loaded library with 350,000+ grades
Pre-loaded with 350,000+ metal grades from 74+ countries
Features a rugged build designed
Rugged construction tailored for harsh industrial and field conditions
Touch-optimised, user-friendly, icon-driven operating software suite
Touch-friendly, icon-based, intuitive operating software
Fast charging capability with 80% charge in less than 10 minutes
Option to create user-defined libraries for metal grades and/or CRMs
Features
Easy On-site Analysis
Purpose-built for scrap yards, foundries, final product testing, aviation, railways, failure analysis, and more, the Metavision-MX delivers high-performance results through a compact, mobile form factor.
Effortless Mobility
Designed to fit into a standard car boot, with a 4-metre conduit (extendable to 10 metres), the Metavision-MX ensures convenient mobility for remote or large-scale site analysis.
Multiple Probe Options
Choose from a range of probes, including the advanced UVis Smart probe, which can analyse both UV and visible elements in one spark for improved throughput.
UV Analysis
Enables low-level detection of Deep UV elements like Carbon, Sulphur, Phosphorus, Boron, and Nitrogen, with detection limits as low as ≤20 ppm.
Comprehensive Grade Identification
Access a vast built-in library of 350,000+ standards from over 75 countries, ideal for PMI, grade verification, and regulatory compliance.
Real-Time Data Display
The optional touchscreen-enabled probe displays instant results on-site, reducing time and effort by eliminating return trips to the main unit.
Special
Applications

The Metavision-MX and Metavision-MX+ enable users to resolve the broadest range of applications and use cases across various industries, ensuring high accuracy, reliability, and repeatability.

M1 8mm Adapter
M1 8mm Adapter
Base Plate with 8mm diameter spark hole
M2 Small Sample Adapter Kit
M2 Small Sample Adapter Kit
Base Plate with Ceramic discs from 3 mm to 8 mm diameter
M3 Tube Adapters
M3 Tube Adapters
Analysis of tubes with diameters ranging from 10 mm to 300 mm (Side-on analysis)
M4 Adapter (Front-end)
M4 Adapter (Front-end)
Analysis of Wire rods from 1 mm to 5 mm diameter
M5 Adapter (Front-end)
M5 Adapter (Front-end)
Analysis of Wire rods from 5 mm to 13 mm diameter
M6 Adapter (Side-on)
M6 Adapter (Side-on)
Analysis of wire rod samples from 1 mm to 10 mm diameter
Ecosystem

A comprehensive ecosystem for your Optical Emission Spectrometer.

MetaLib Pro
The World's largest library for instant metal-grade identification.
Learn more
MPALabTab
Mobile application to access your OES data from anywhere, anytime.
Learn more
LIMS
Advanced data integration and analysis tool.
Learn more
WirelessRTDS
Wirelessly transmit your readings from the lab to the melting platform.
Learn more
Charge Correction Platform
Enhance your melt recipe in real-time with melt process optimisation tool.
Learn more
Tech Specs
General
Technology
Arc/Spark Optical Emission
Type
Mobile
Form Factor Options
Mobile/Benchtop
Available Factory Calibrations
Ferrous, Aluminium, Copper, Zinc, Nickel, Titanium, Tin, Lead & Cobalt
Alloy Programs
Individual alloy programs for all of the above
Optics
Detector Type
Multi-CMOS
Wavelength Coverage
170-420 nm
Probes
UVis Smart Probe (Inluding C, S, P, N)
Yes
Spark Probe
Yes
Arc Probe
Yes
Time to Swap Probes
<10 seconds
Battery
Battery Life
8 Hours
Number of Burns per Charge
~800
Fast Charging
Yes, 80% charge in less than 10 minutes
Grades' Library
3,50,000+ In-built grades from 74+ Countries
Analysis Features
Elemental Coverage
50+
Nitrogen (N) in Steels
Down to 20 ppm
Sodium (Na) & Lithium (Li) in Aluminium
No
RoHS Elements (Pb, Hg, Cd)
No
Standardisation Technology
Smart STD (Single-sample Technique)
Physical Dimensions and Weight
Size (Benchtop)
472 mm (L) x 640 mm (W) x 905 mm (H)
Weight (Benchtop)
~31 Kgs
Size (Including all modules)
585 mm (L) x 690 mm (B) x 1380 mm (H)
Weight (Including all modules)
~70 Kgs
Environmental Conditions
Operating Temperature
0 - 45˚C
Storage Temperature
-10 - 50˚C
Relative Humidity
20 - 80% (Non-condensing)
Shock Proof Safety
Yes
Dust Proof Design
Yes
Splash Proof Design
Yes
More Details
Reach out to us at marketing@metalpower.net to learn more about our Mobile-OES series, the Metavision-MX+ and Metavision-MX featuring an integrated UV and Visible probe that eliminates the need for probe switching, while its lightweight, modular design ensures effortless transportation and tool-free operations, enabling users to analyse metals anytime, anywhere.
